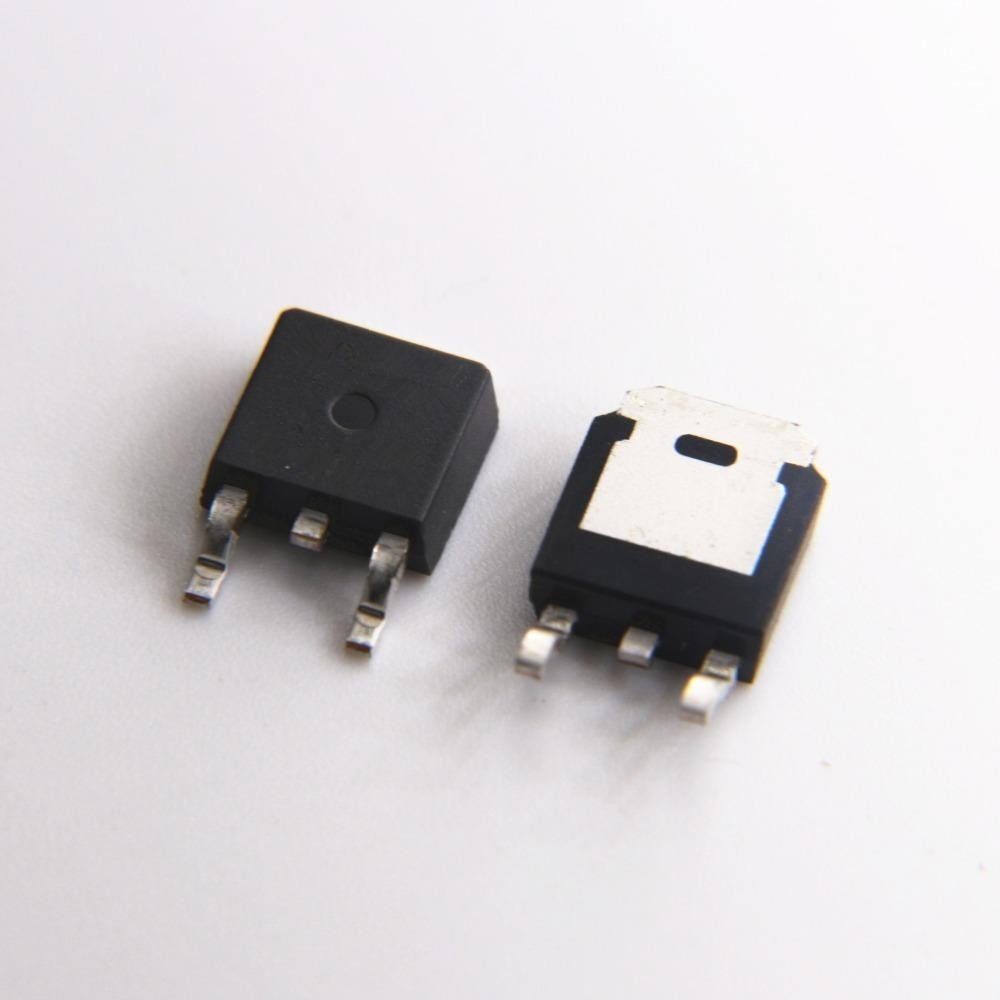

2SD1802 TO-252 3A 60V 15W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
0,45 USD + KDV
*1,73 TL den başlayan taksitlerle!
18,64 TL
2SD1802 TO-252 3A 60V 15W NPN TRANSISTOR
2SD1802
Type Designator: 2SD1802
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 15 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 25 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO251
Bu ürüne ilk yorumu siz yapın!
