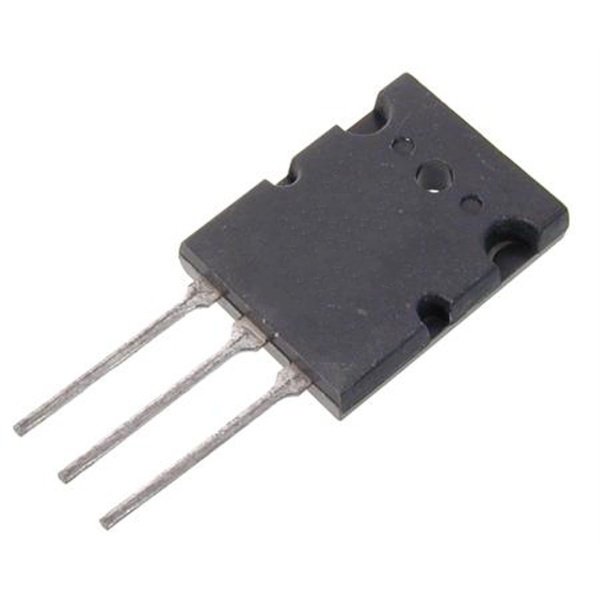

2SD1525 TO-3PL 30A 100V 150W NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
13 Adet
Fiyat
7,50 USD + KDV
*28,88 TL den başlayan taksitlerle!
310,60 TL
2SD1525 TO-3PL 30A 100V 150W NPN TRANSISTOR
2SD1525
Type Designator: 2SD1525
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 30 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Collector Capacitance (Cc): 500 pF
Forward Current Transfer Ratio (hFE), MIN: 2000
Package: TO220
Bu ürüne ilk yorumu siz yapın!
