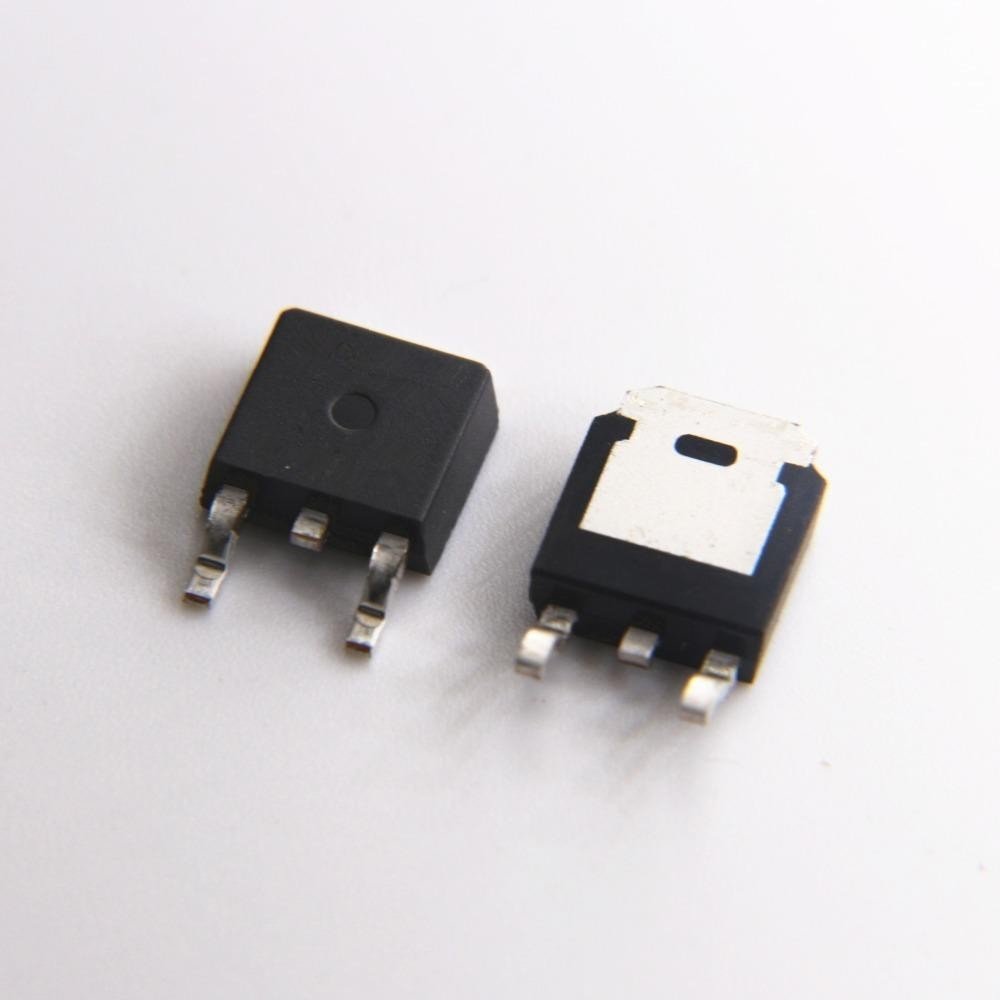

2SD1033 TO-252 200V 2A 20W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1000 Adet
Fiyat
0,31 USD + KDV
*1,19 TL den başlayan taksitlerle!
12,84 TL
2SD1033 TO-252 200V 2A 20W NPN TRANSISTOR
2SD1033
Type Designator: 2SD1033
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 20 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO237
Bu ürüne ilk yorumu siz yapın!
