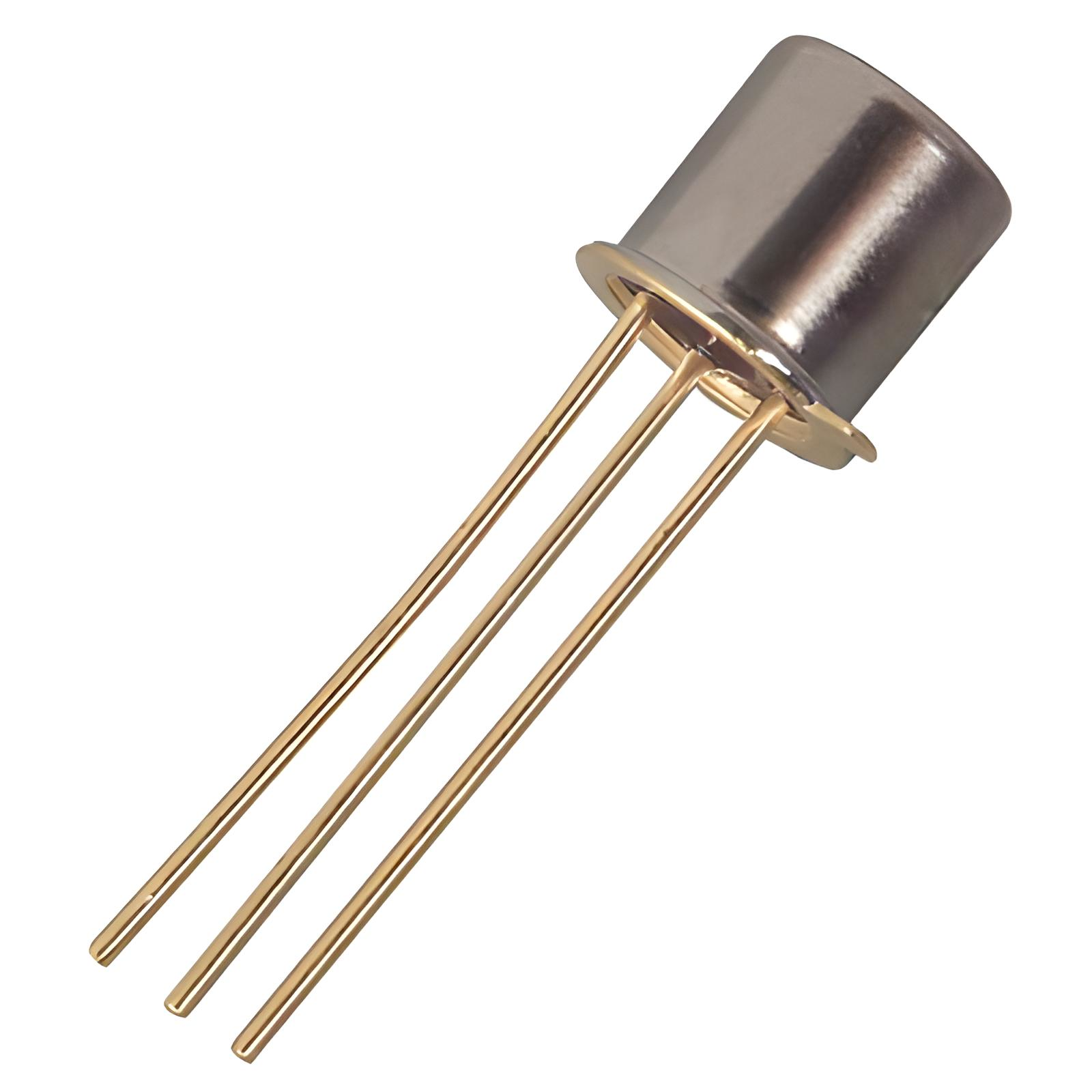

2SC879 TO-5 1A 60V 0.8W NPN TRANSISTOR
2SC879
Type Designator: 2SC879
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.8 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 175 °C
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO5
