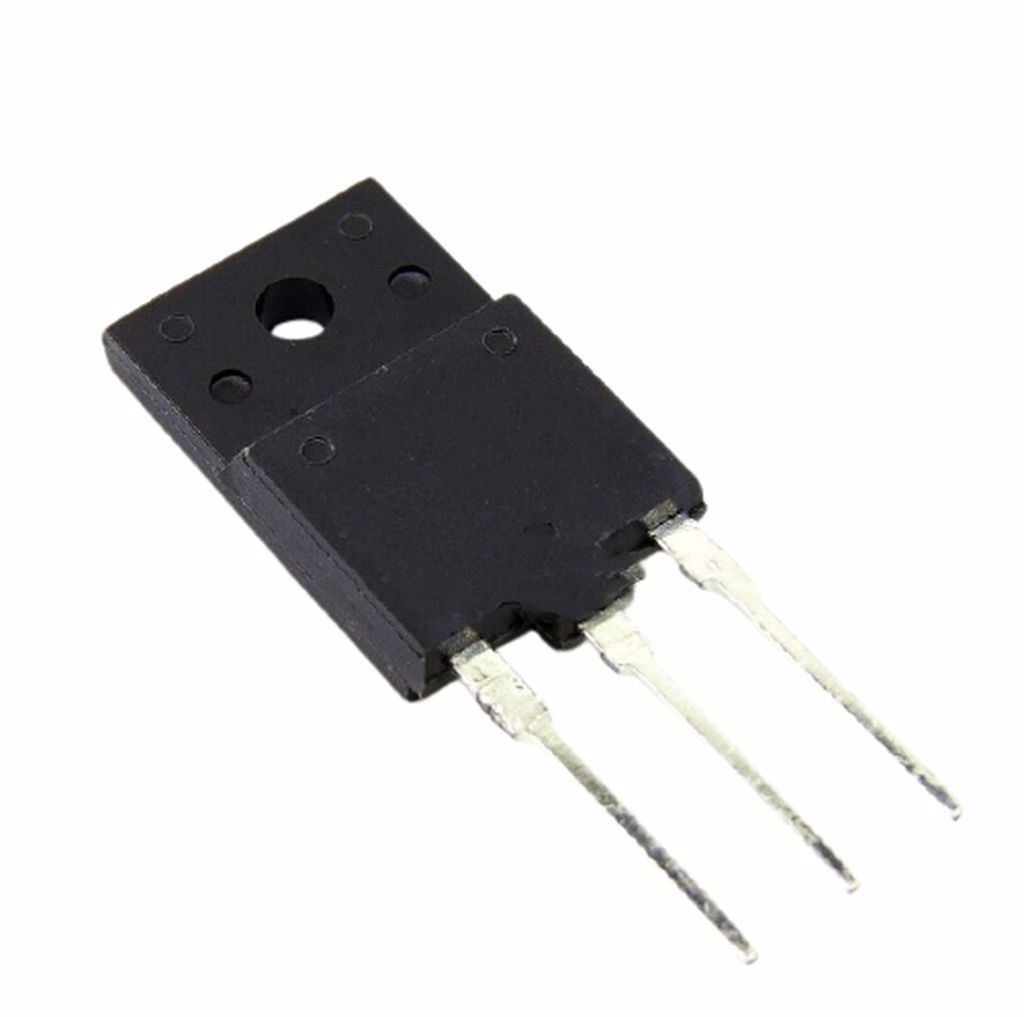

2SC5905 TO-3PF 1700V 20A 70W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
6 Adet
Fiyat
2,25 USD + KDV
*8,98 TL den başlayan taksitlerle!
96,58 TL
2SC5905 TO-3PF 1700V 20A 70W NPN TRANSISTOR
2SC5905
Type Designator: 2SC5905
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 70 W
Maximum Collector-Base Voltage |Vcb|: 1700 V
Maximum Collector-Emitter Voltage |Vce|: 600 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 20 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 5
Package: SC-94 TOP-3E-A1
Bu ürüne ilk yorumu siz yapın!
