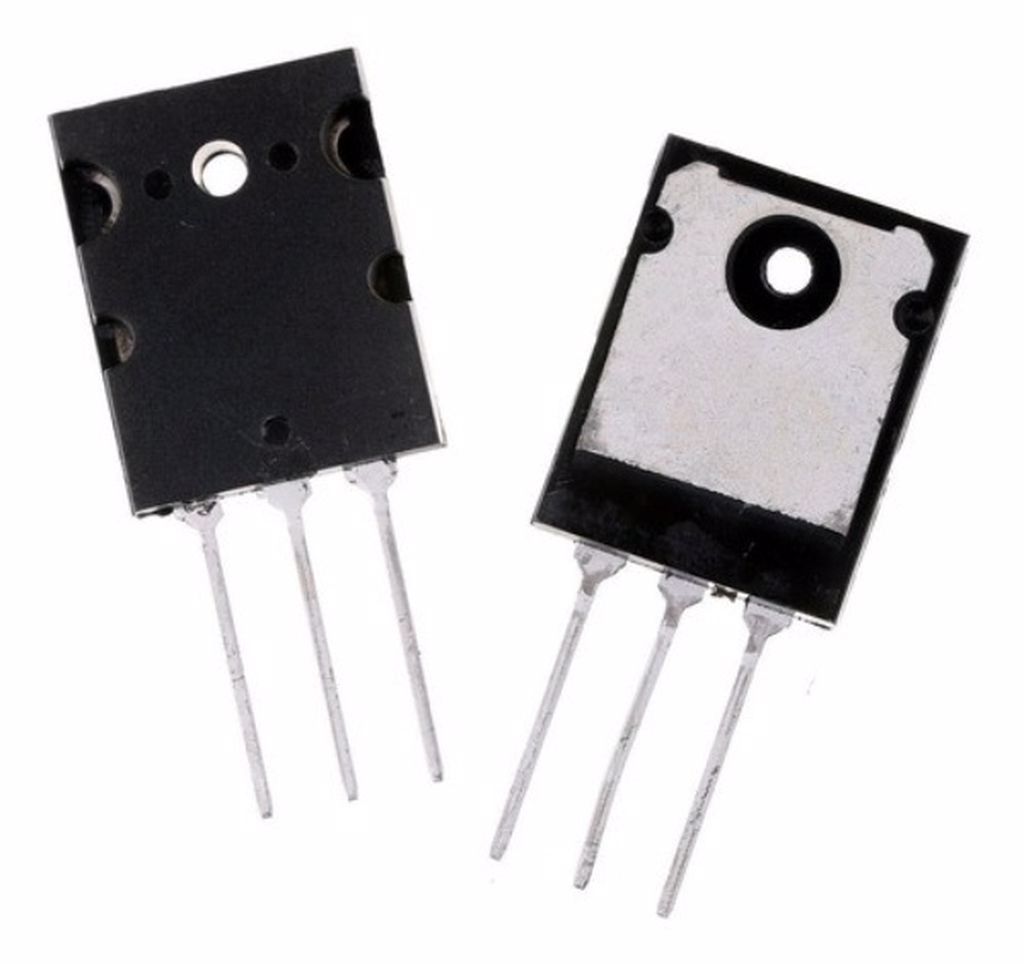

2SC5858 TO-3PBL 22A 1700V 200W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
3 Adet
Fiyat
2,85 USD + KDV
*10,97 TL den başlayan taksitlerle!
118,03 TL
2SC5858
Type Designator: 2SC5858
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 200 W
Maximum Collector-Base Voltage |Vcb|: 1700 V
Maximum Collector-Emitter Voltage |Vce|: 750 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 22 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 2 MHz
Collector Capacitance (Cc): 280 pF
Forward Current Transfer Ratio (hFE), MIN: 5
Package: 2-21F2A
