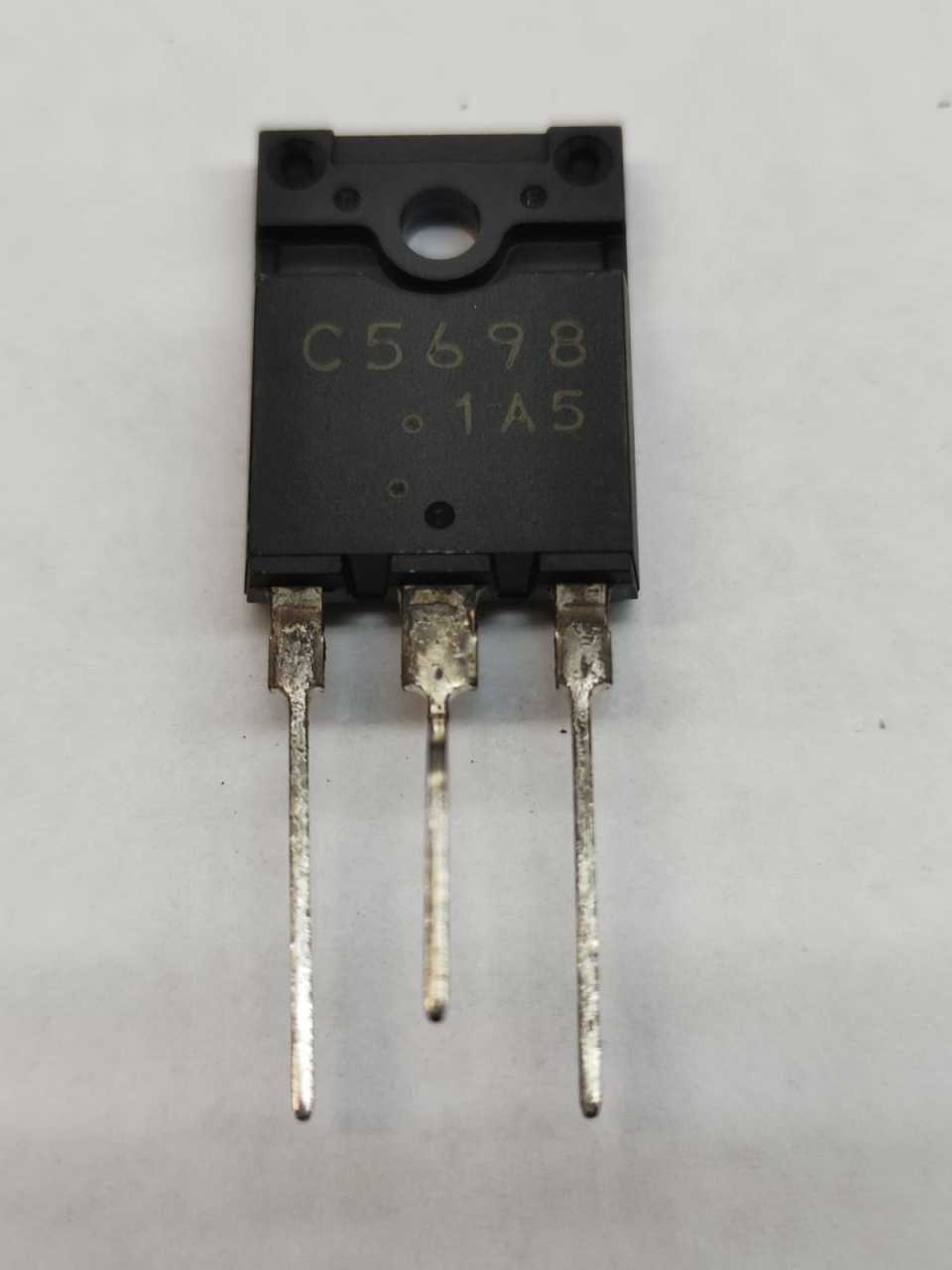

2SC5698 TO-3PF 1500V 8A 65W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
4,50 USD + KDV
*17,25 TL den başlayan taksitlerle!
185,55 TL
2SC5698 TO-3PF 1500V 8A 65W NPN TRANSISTOR
2SC5698
Type Designator: 2SC5698
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 4
Package: TO-3PMLH
