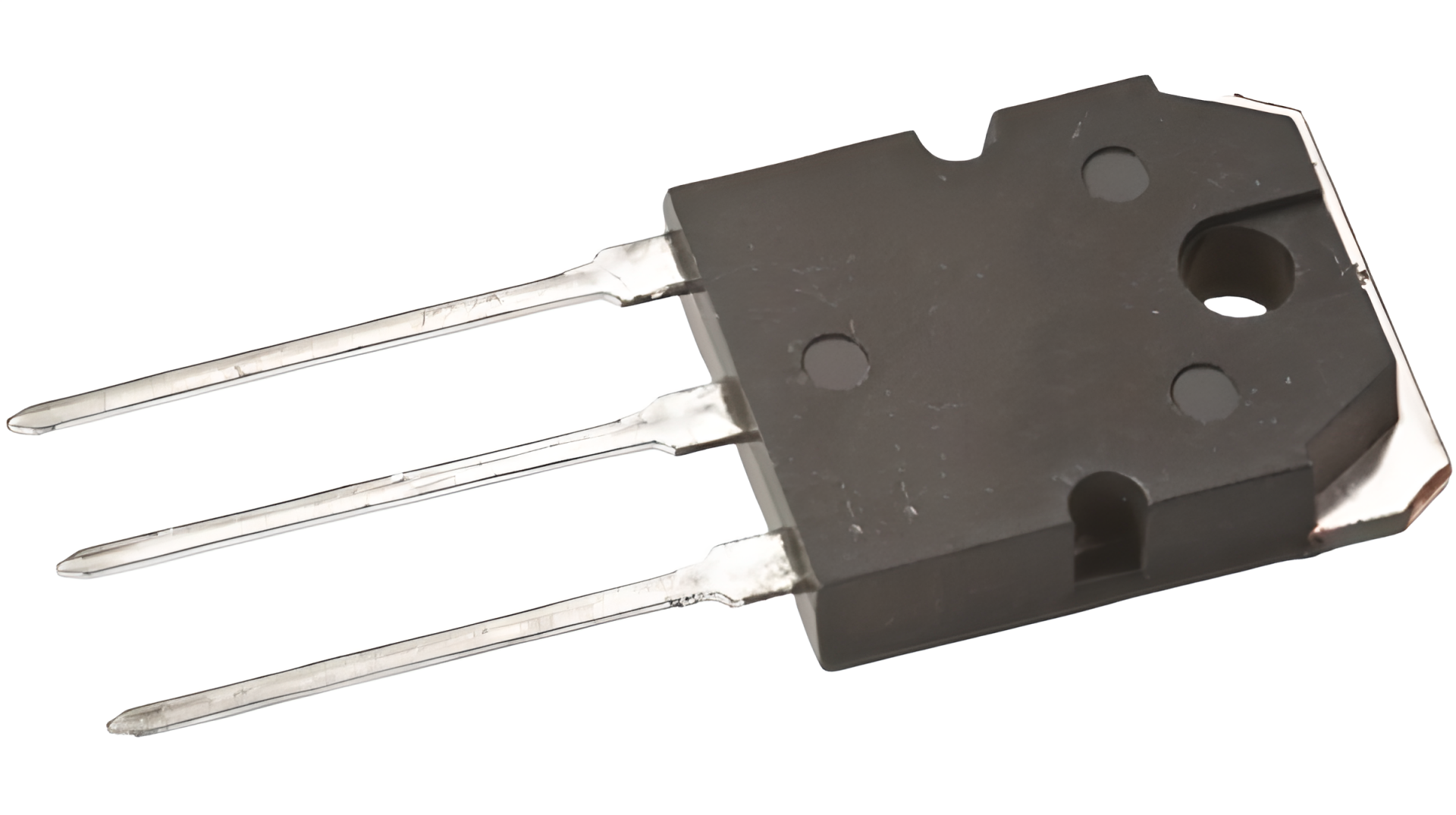

2SC5358 TO-3PN 230V 15A 150W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
1,99 USD + KDV
*7,63 TL den başlayan taksitlerle!
82,06 TL
2SC5358 TO-3PN 230V 15A 150W NPN TRANSISTOR
2SC5358
Type Designator: 2SC5358
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 230 V
Maximum Collector-Emitter Voltage |Vce|: 230 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: TO3PN
