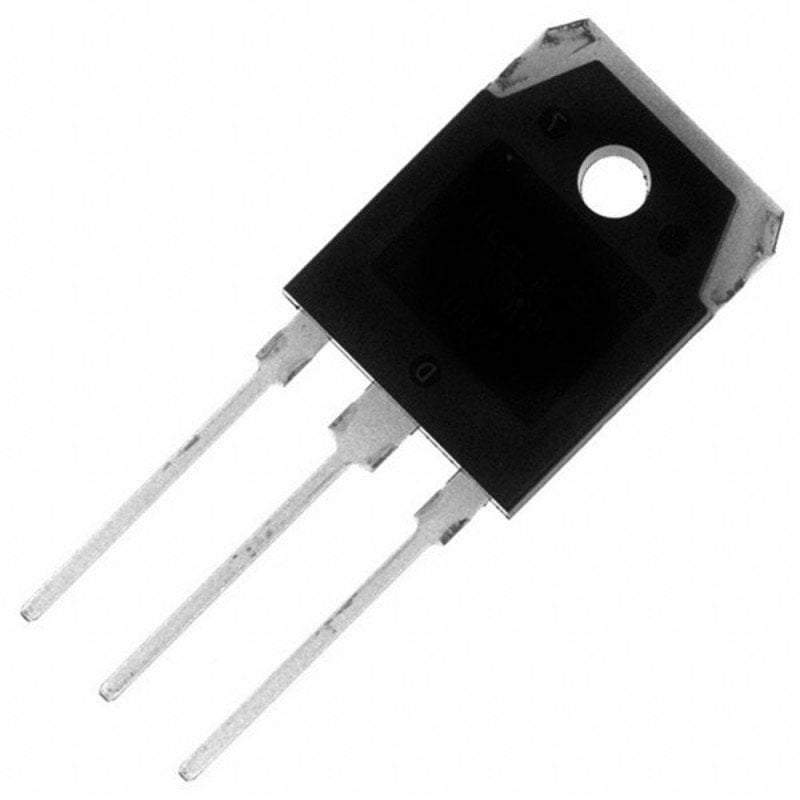

2SC5354 TO-3PN 900V 5A NPN TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
3,95 USD + KDV
*15,16 TL den başlayan taksitlerle!
163,03 TL
2SC5354
Type Designator: 2SC5354
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 900 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 15
Package: TO3PN
