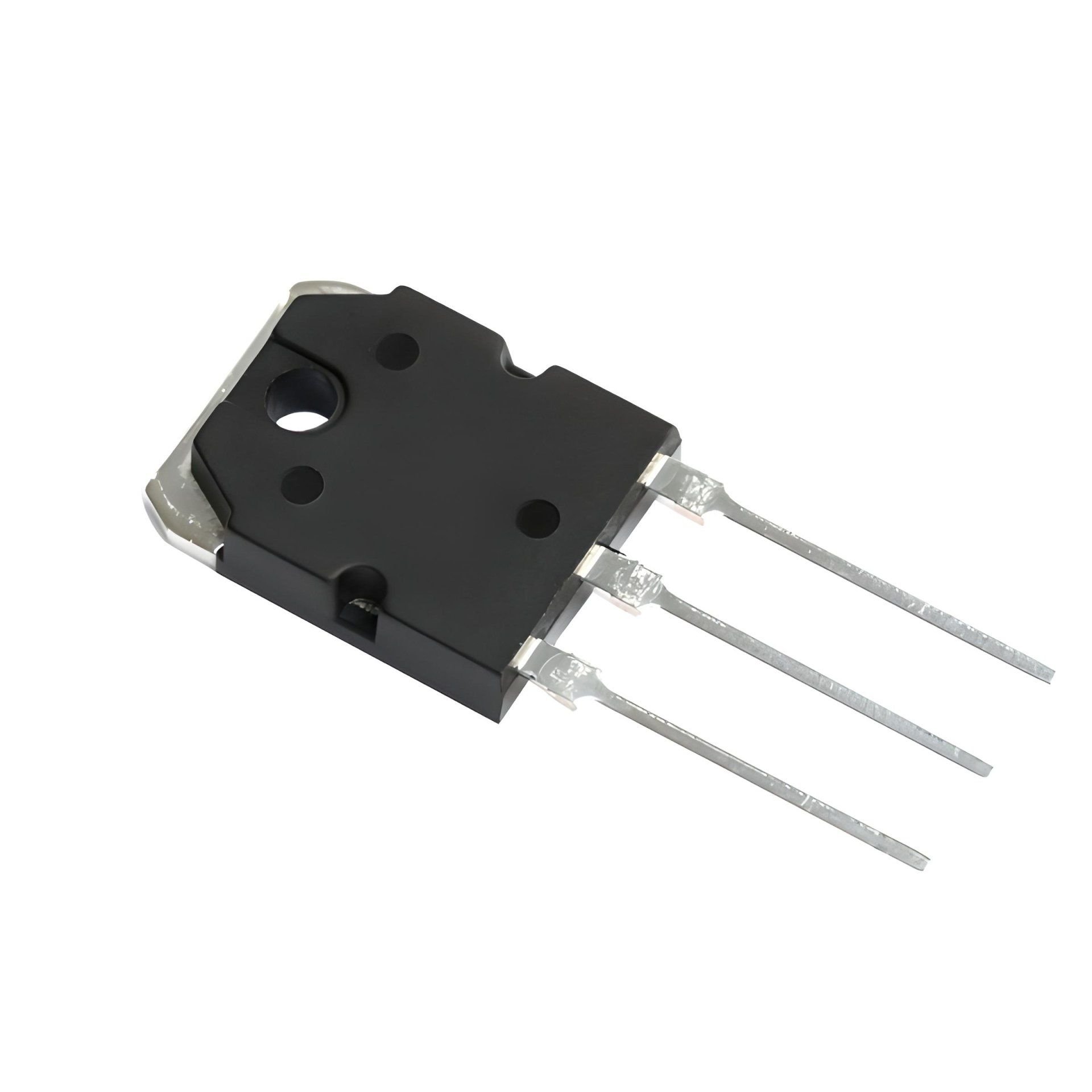

2SC5198 TO-3PN 10A 140V 100W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
942 Adet
Fiyat
1,45 USD + KDV
*5,56 TL den başlayan taksitlerle!
59,79 TL
2SC5198
Type Designator: 2SC5198
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 170 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Package: TO3PN
