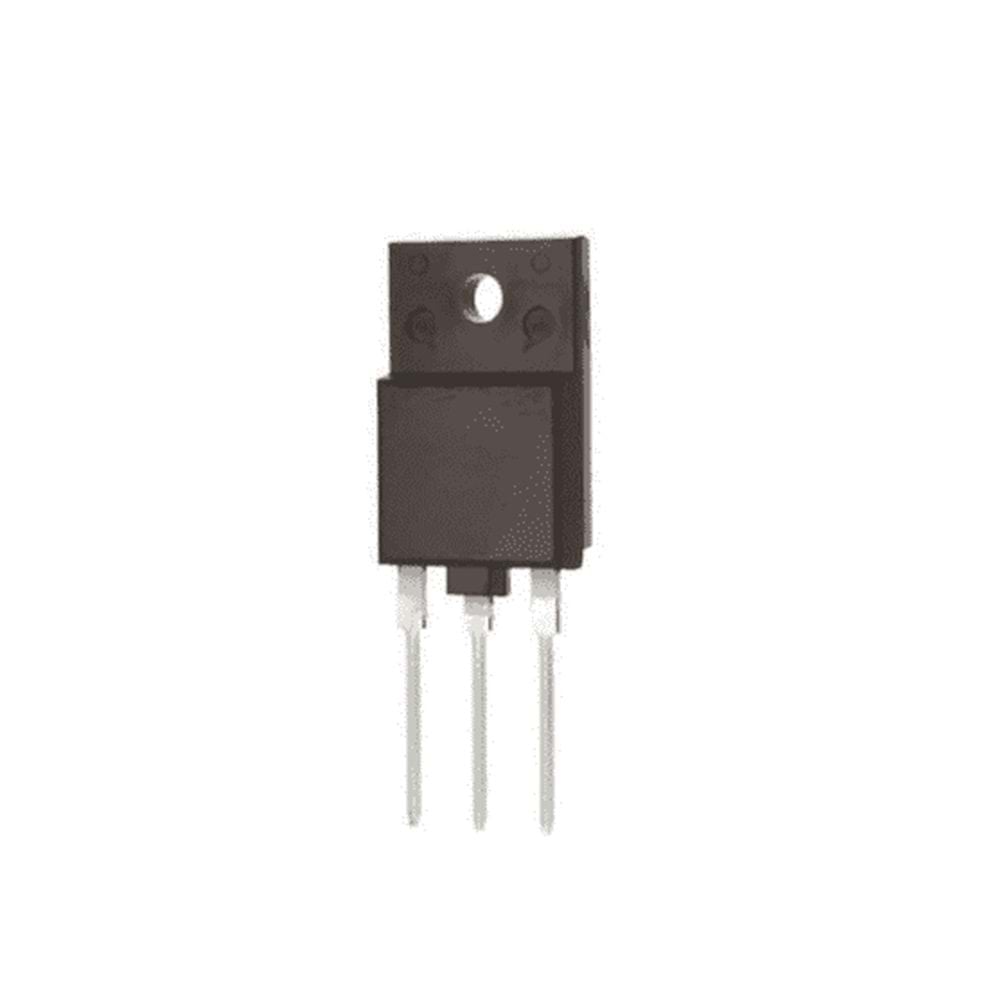

2SC5150 TO-3PF 1700V 10A 50W NPN TRANSISTOR
2SC5150
Type Designator: 2SC5150
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 1700 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Transition Frequency (ft): 2 MHz
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO3PHIS
