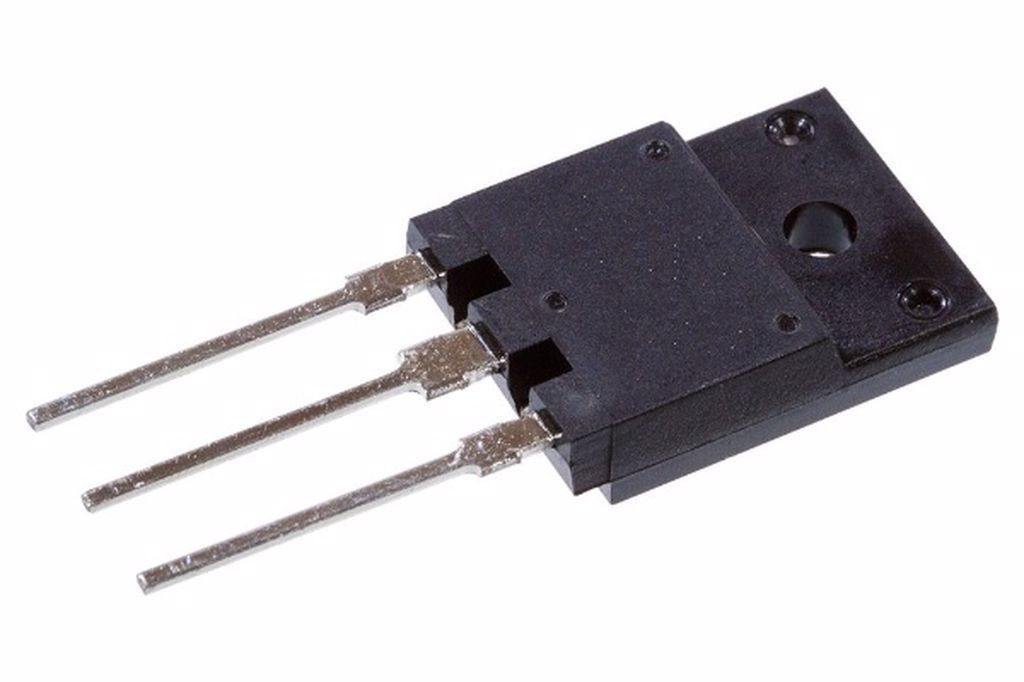

2SC4531 TO-3PF NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
1,56 USD + KDV
*5,98 TL den başlayan taksitlerle!
64,32 TL
2SC4531 TO-3PF NPN TRANSISTOR
2SC4531
Type Designator: 2SC4531
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 600 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 1 MHz
Collector Capacitance (Cc): 210 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: ISO218
