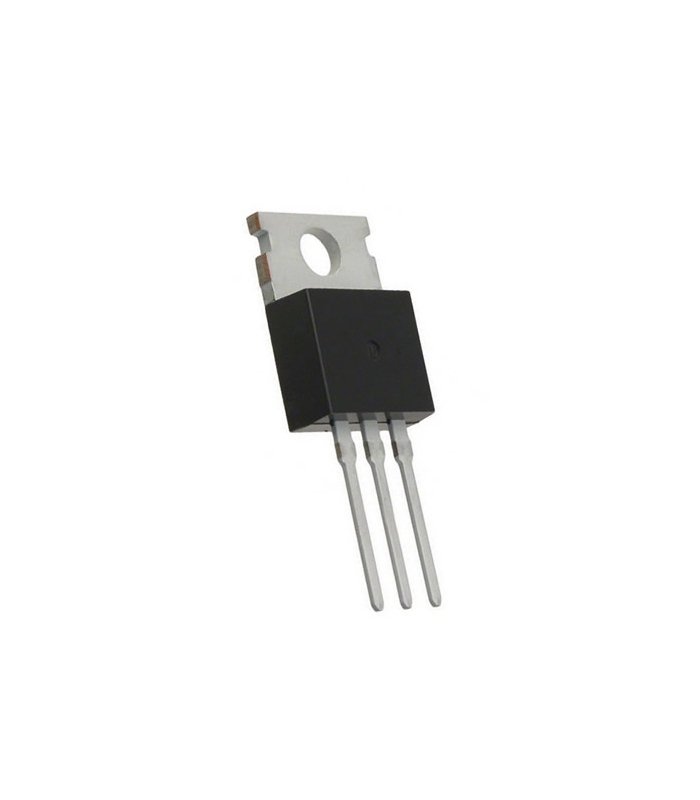

2SC4512 TO-220 120V 6A 50W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
15 Adet
Fiyat
2,40 USD + KDV
*9,20 TL den başlayan taksitlerle!
98,96 TL
2SC4512 TO-220 120V 6A 50W NPN TRANSISTOR
2SC4512
Type Designator: 2SC4512
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO220
