2SC4468 TO-3P 10A 200V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
450 Adet
Fiyat
2,85 USD + KDV
*10,97 TL den başlayan taksitlerle!
118,03 TL
2SC4468
Type Designator: 2SC4468
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 50

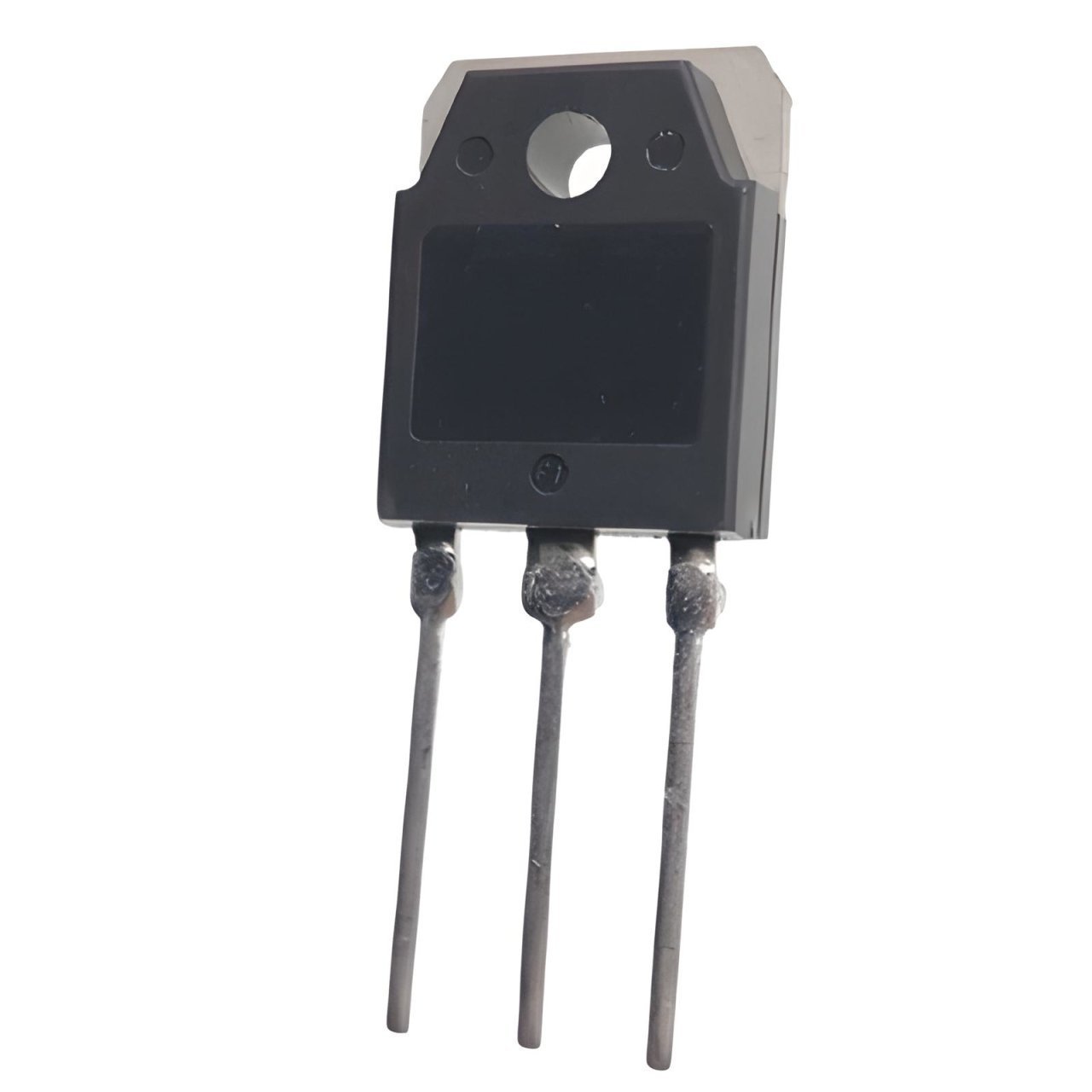

Package: TO3P
