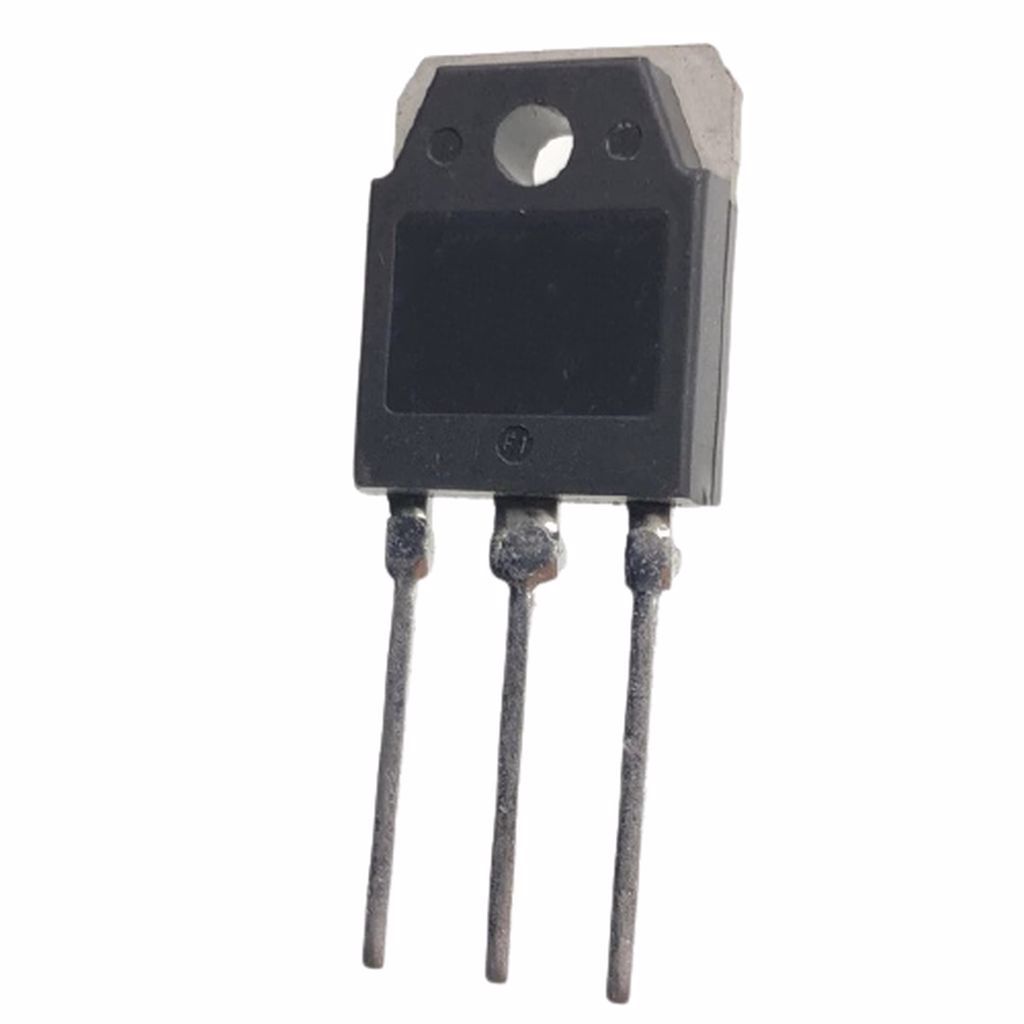

2SC4467 TO-3P 160V 8A 80W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
20 Adet
Fiyat
2,40 USD + KDV
*9,20 TL den başlayan taksitlerle!
99,00 TL
2SC4467 TO-3P 160V 8A 80W NPN TRANSISTOR
2SC4467
Type Designator: 2SC4467
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO218
Bu ürüne ilk yorumu siz yapın!
