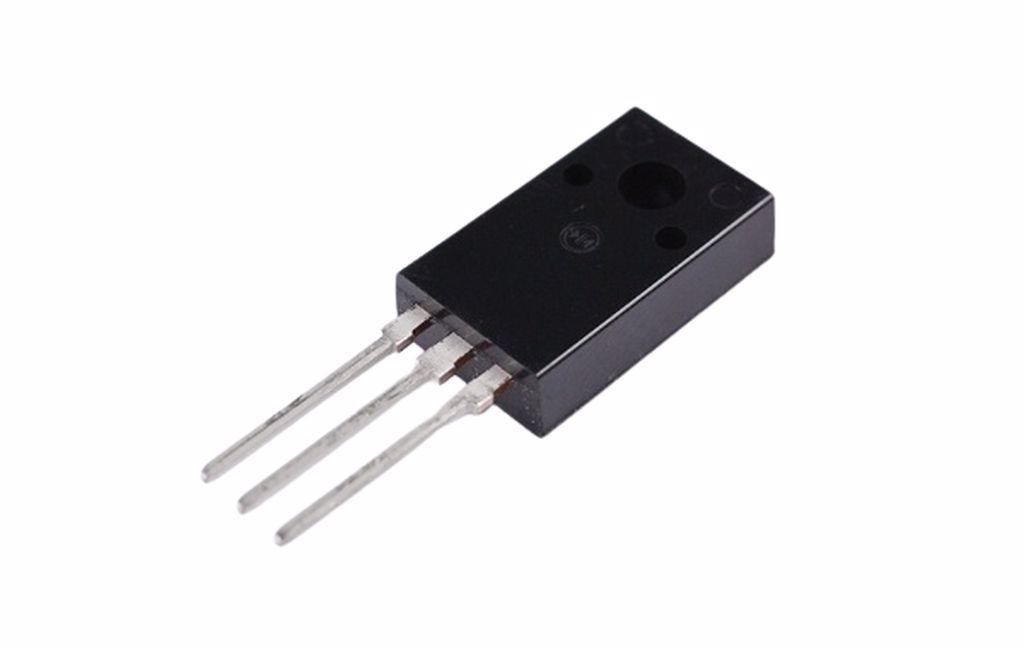

2SC4381 TO-220F 150V 2A 25W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
3 Adet
Fiyat
0,99 USD + KDV
*3,80 TL den başlayan taksitlerle!
40,82 TL
2SC4381 TO-220F 150V 2A 25W NPN TRANSISTOR
2SC4381
Type Designator: 2SC4381
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 150 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN: 200
Package: TO220
