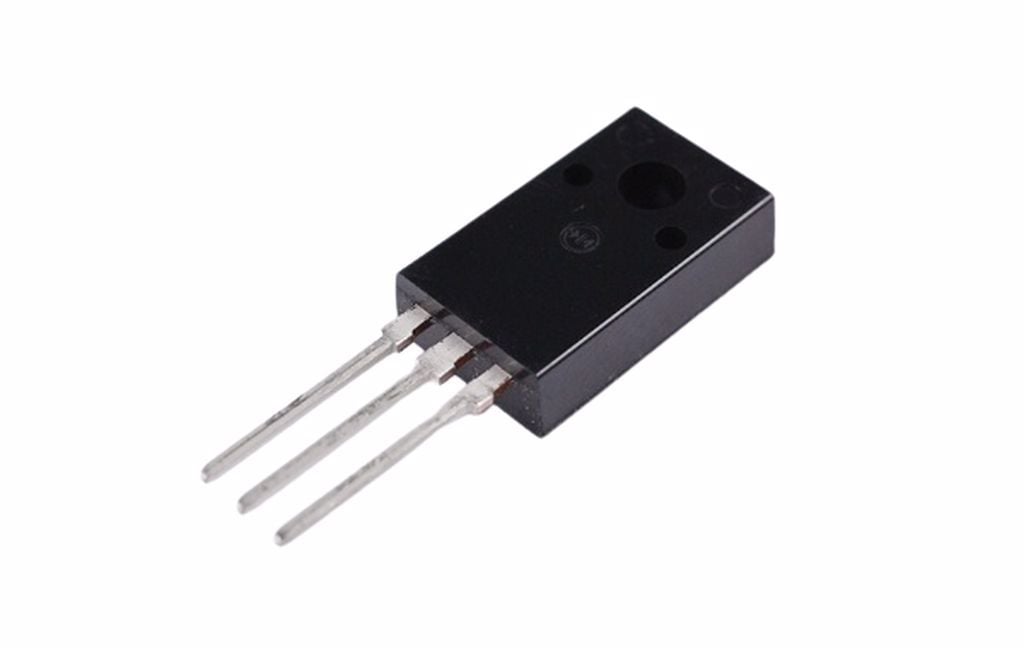

2SC4231 TO-220F 1200V 2A 30W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
30 Adet
Fiyat
1,99 USD + KDV
*7,63 TL den başlayan taksitlerle!
82,06 TL
2SC4231 TO-220F 1200V 2A 30W NPN TRANSISTOR
2SC4231
Type Designator: 2SC4231
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 1200 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 8 MHz
Forward Current Transfer Ratio (hFE), MIN: 160
Package: ISO220
