2SC4027S-TL-E TO-252 160V 1.5A 15W NPN TRANSISTOR
2SC4027
Type Designator: 2SC4027
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 15 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 12 pF
Forward Current Transfer Ratio (hFE), MIN: 100

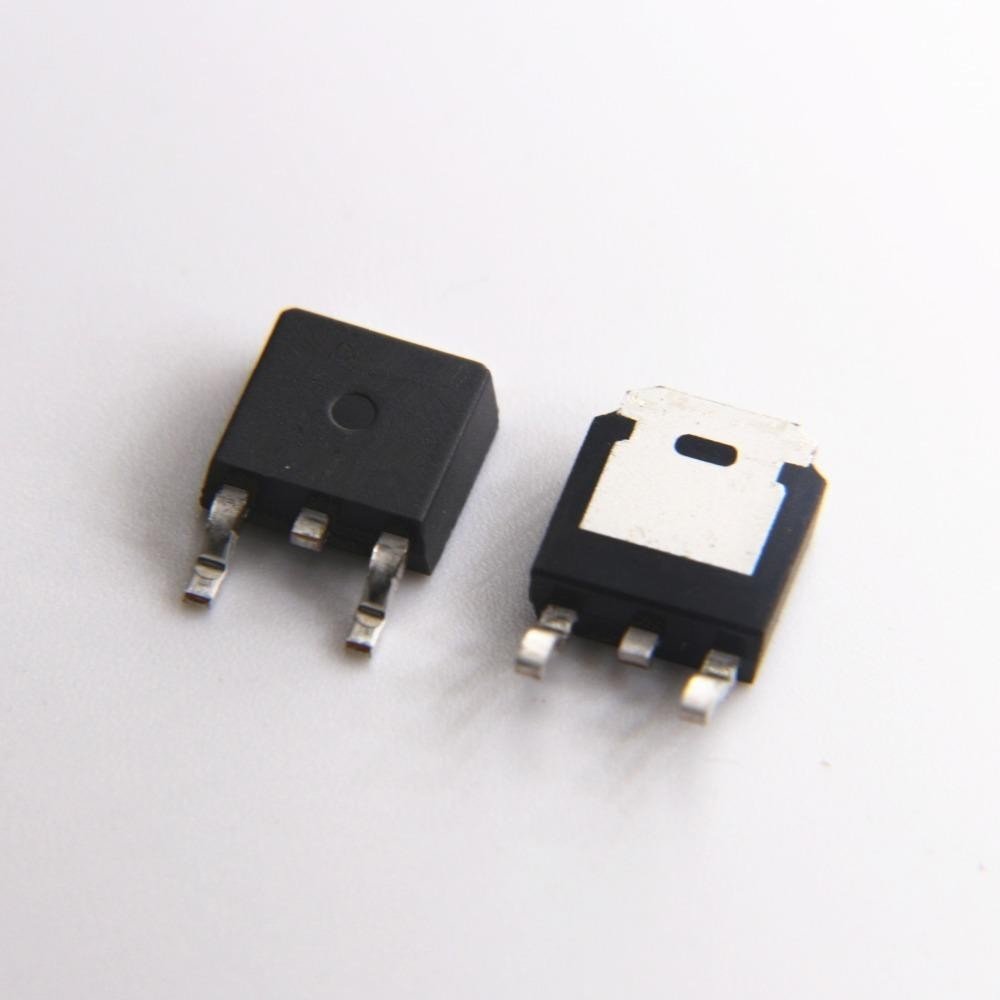

Package: DPAK
