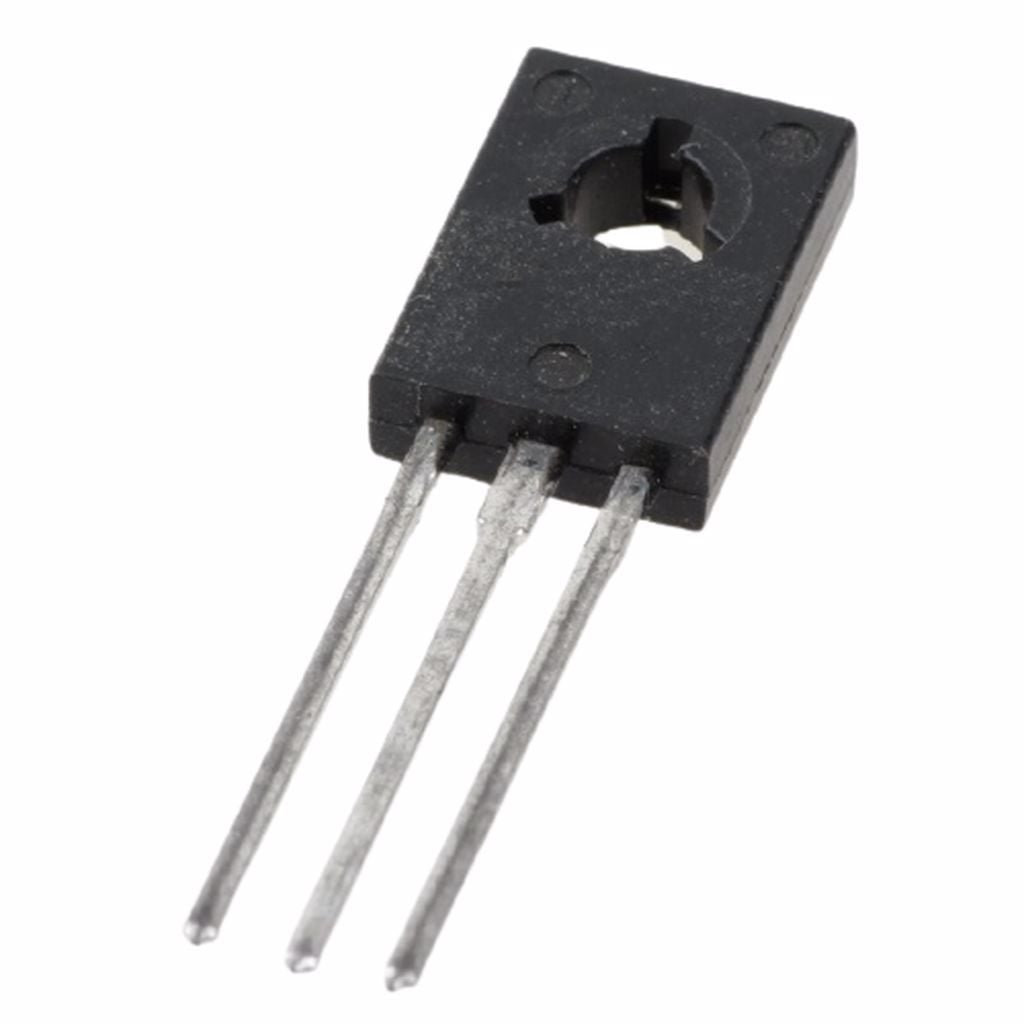

2SC3788E 100V 100mA TO-126 NPN TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
1 Adet
Fiyat
0,22 USD + KDV
*0,84 TL den başlayan taksitlerle!
9,07 TL
2SC3788E
Type Designator: 2SC3788E
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 5 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Collector-Emitter Voltage |Vce|: 200 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 1.2 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: ISO126
