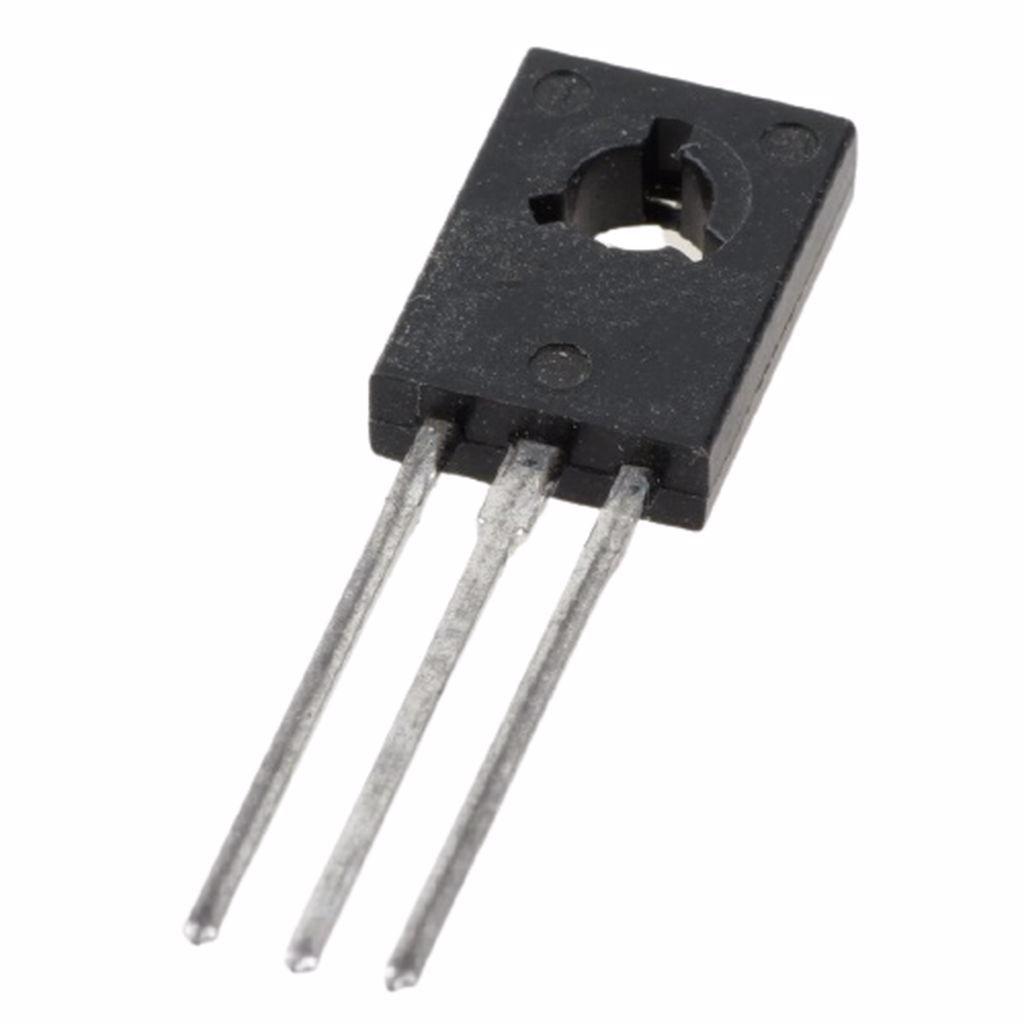

2SC3421 TO-126 120V 1A 10W NPN TRANSISTOR
2SC3421
Type Designator: 2SC3421
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 15 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Package: ISO126
