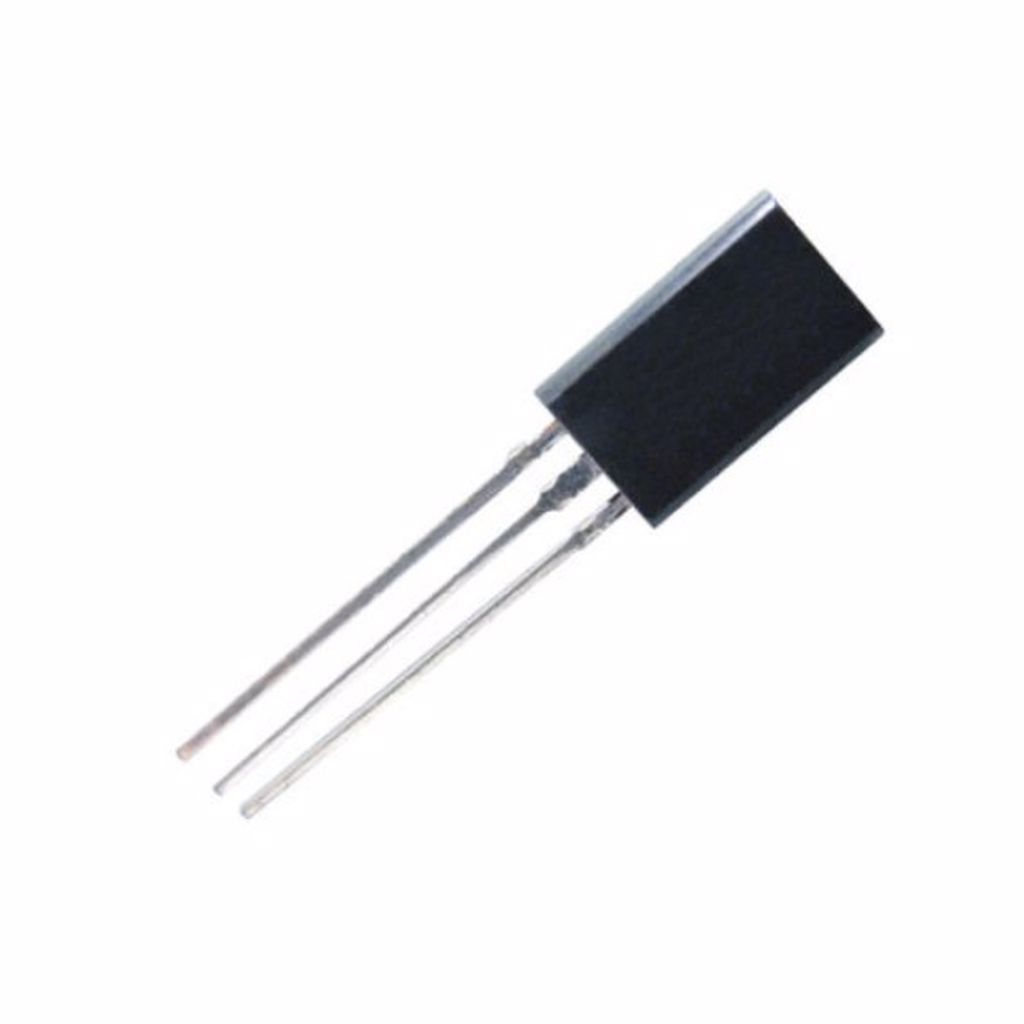

2SC3246 TO-92L 30V 1.5A 0.9W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
4 Adet
Fiyat
0,10 USD + KDV
*0,38 TL den başlayan taksitlerle!
4,12 TL
2SC3246 TO-92L 30V 1.5A 0.9W NPN TRANSISTOR
2SC3246
Type Designator: 2SC3246
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 25 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 130 MHz
Collector Capacitance (Cc): 17 pF
Forward Current Transfer Ratio (hFE), MIN: 400
Package: TO92
