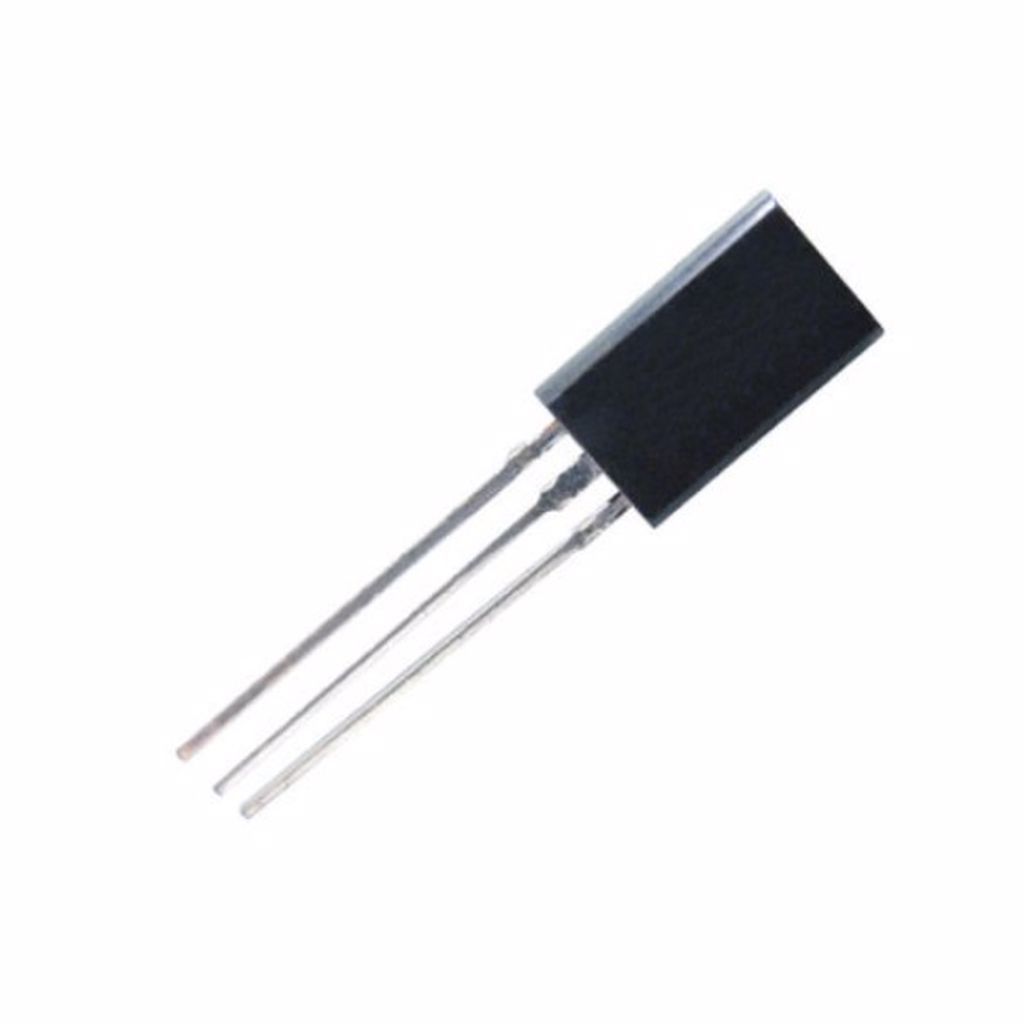

2SC3242A TO-92L 20V 2A 0.9W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
2 Adet
Fiyat
0,18 USD + KDV
*0,69 TL den başlayan taksitlerle!
7,42 TL
2SC3242A TO-92L 20V 2A 0.9W NPN TRANSISTOR
2SC3242A
Type Designator: 2SC3242A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 80 MHz
Collector Capacitance (Cc): 28 pF
Forward Current Transfer Ratio (hFE), MIN: 150
Package: TO92
Bu ürüne ilk yorumu siz yapın!
