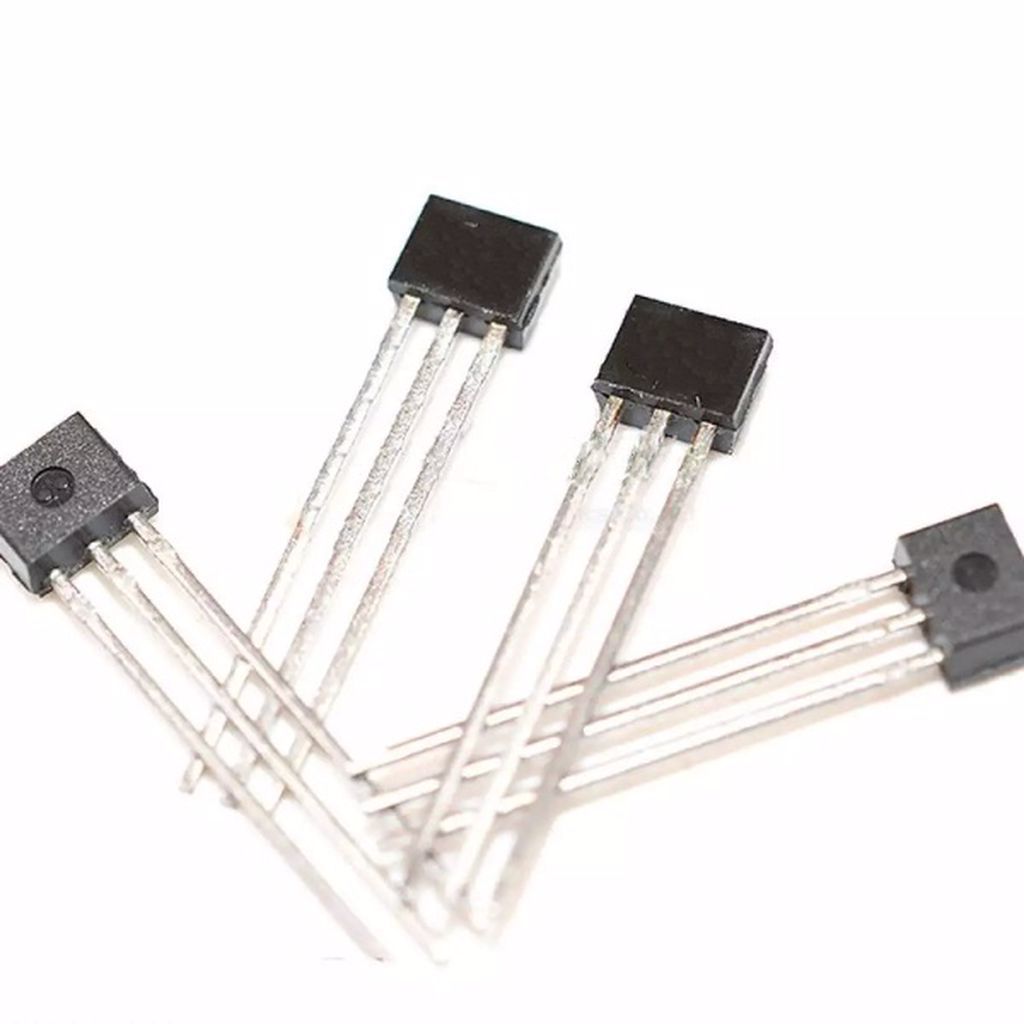

2SC3195 TO-92S 50V 0.05A 0.36W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,04 USD + KDV
*0,15 TL den başlayan taksitlerle!
1,66 TL
2SC3195 TO-92S 50V 0.05A 0.36W NPN TRANSISTOR
2SC3195
Type Designator: 2SC3195
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.36 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 550 MHz
Forward Current Transfer Ratio (hFE), MIN: 80
Package: U29-1
