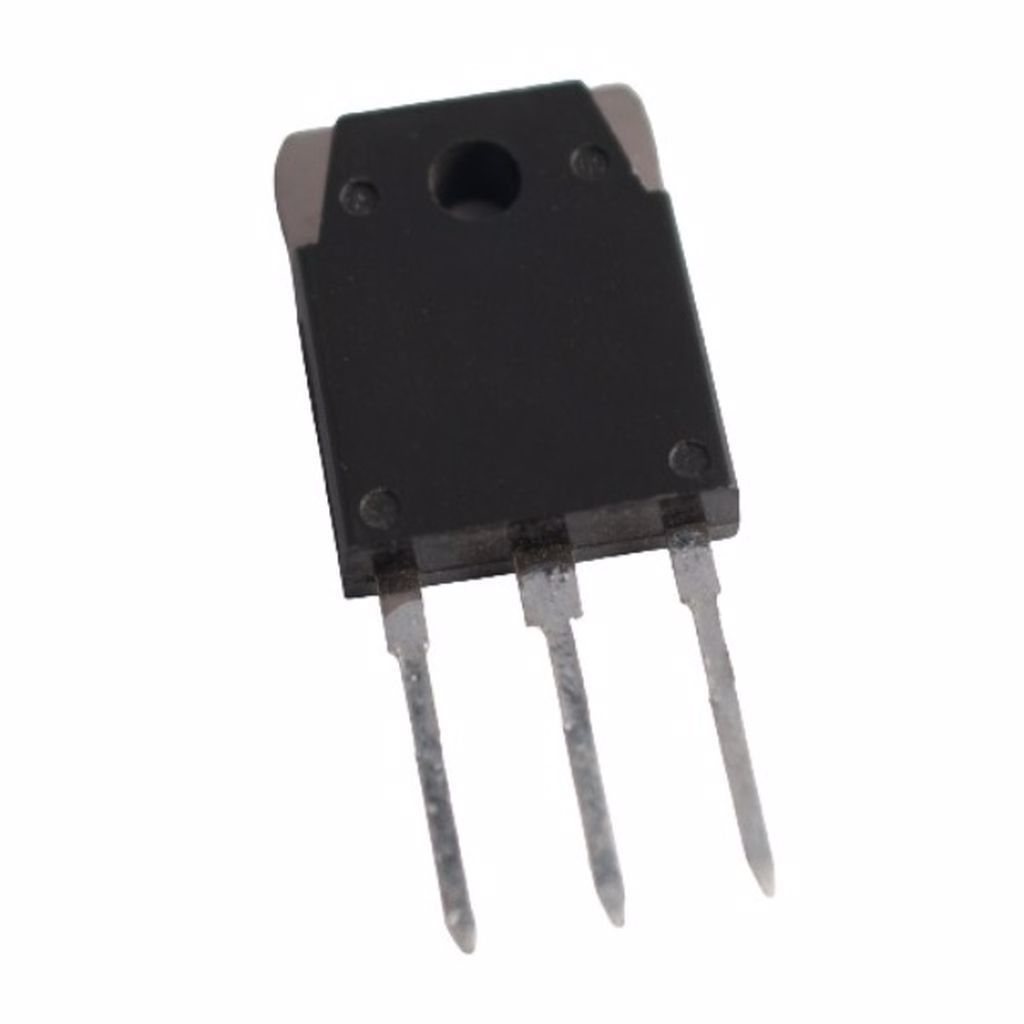

2SC3153 TO-3P 800V 6A 100W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
1,77 USD + KDV
*6,82 TL den başlayan taksitlerle!
73,30 TL
2SC3153 TO-3P 800V 6A 100W NPN TRANSISTOR
2SC3153
Type Designator: 2SC3153
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 900 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 6 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 15 MHz
Collector Capacitance (Cc): 60 pF
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO218
