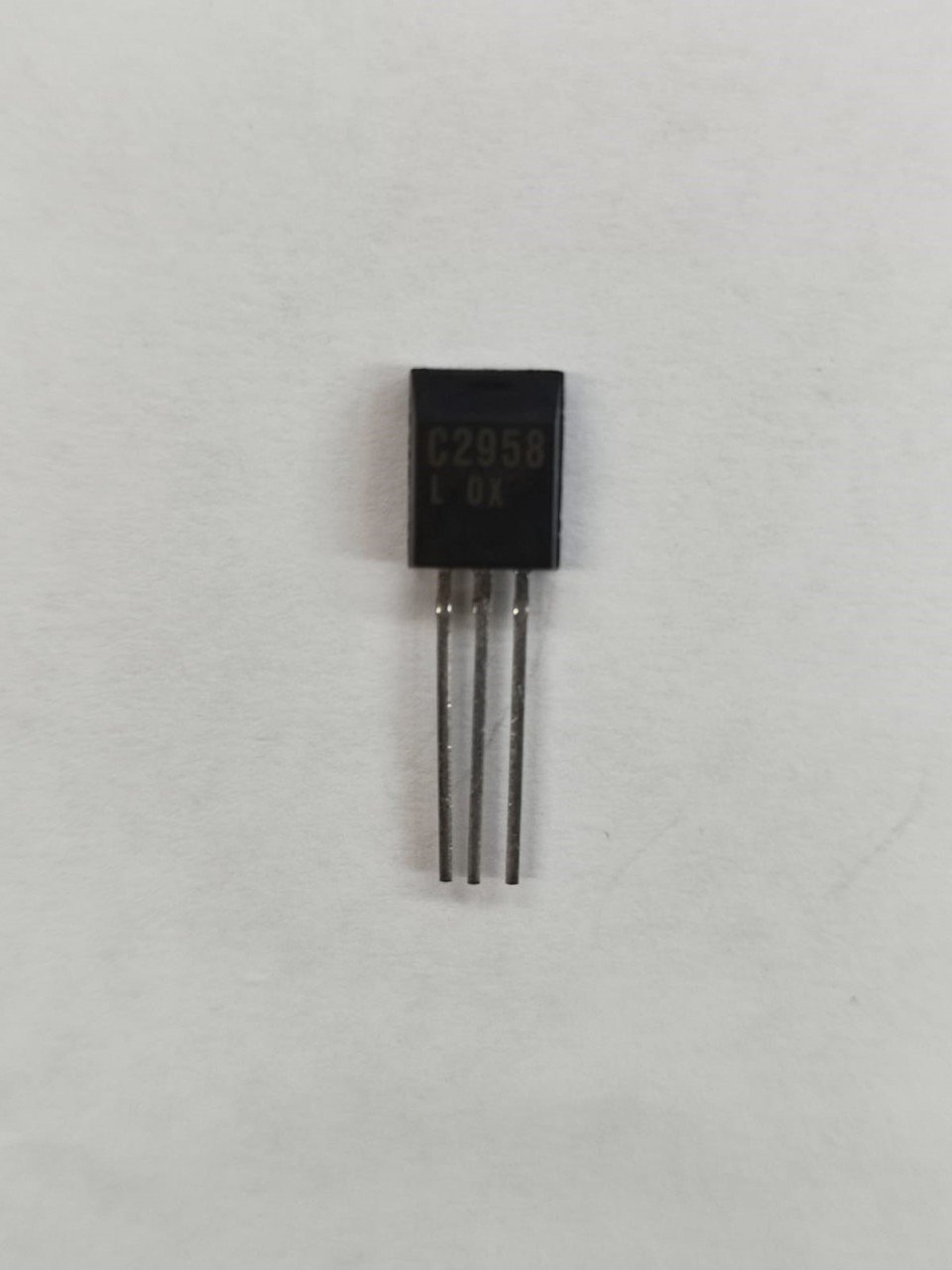

2SC2958 SP-8 160V 0.5A 1W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,20 USD + KDV
*0,77 TL den başlayan taksitlerle!
8,28 TL
2SC2958 SP-8 160V 0.5A 1W NPN TRANSISTOR
2SC2958
Type Designator: 2SC2958
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 25 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Package: X73
Bu ürüne ilk yorumu siz yapın!
