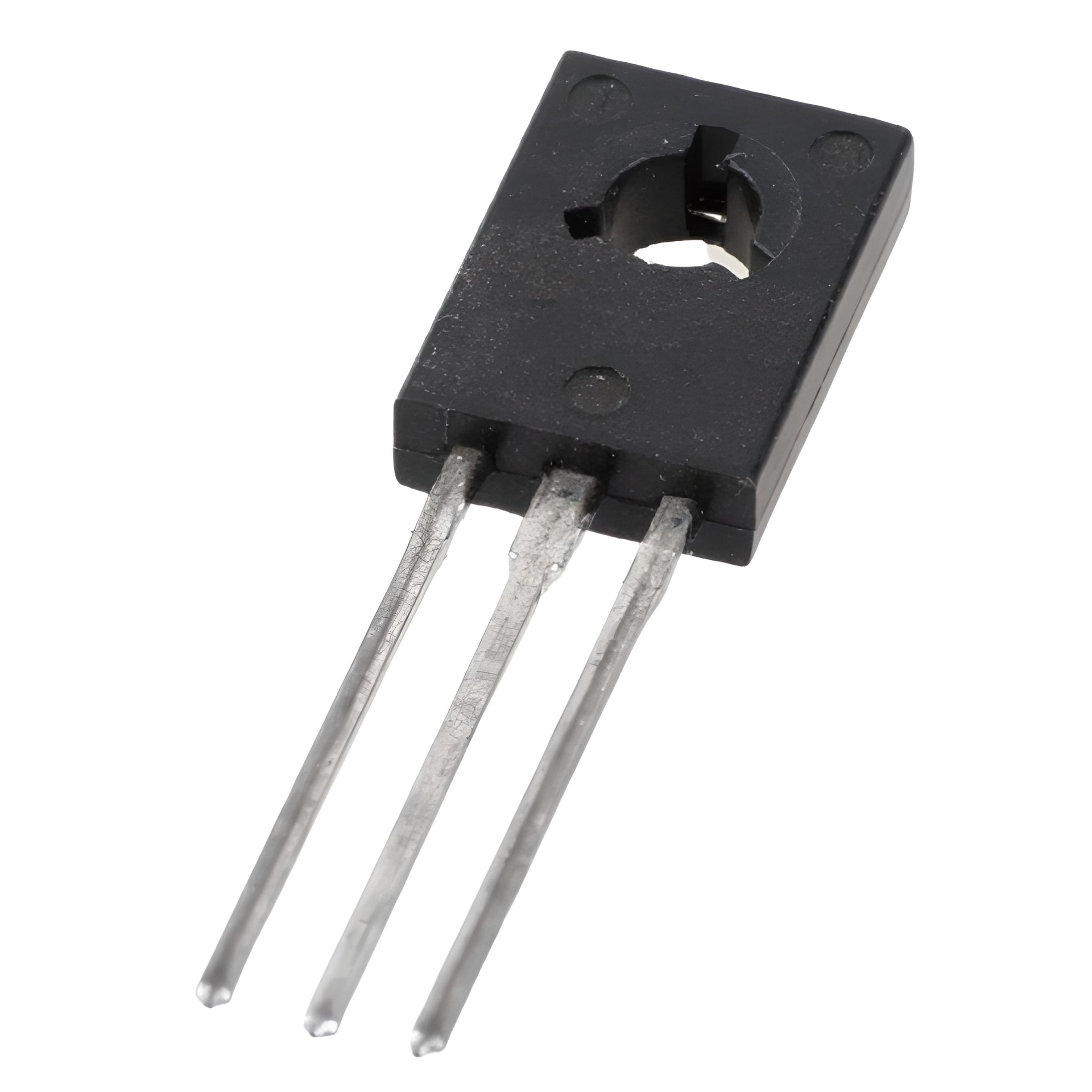

2SC2690 - (KSC2690A) TO-126 160V 1.2A 20W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
100 Adet
Fiyat
0,40 USD + KDV
*1,54 TL den başlayan taksitlerle!
16,57 TL
2SC2690 - (KSC2690A) TO-126 160V 1.2A 20W NPN TRANSISTOR
KSC2690A
Type Designator: KSC2690A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 20 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 175 MHz
Collector Capacitance (Cc): 19 pF
Forward Current Transfer Ratio (hFE), MIN: 60
Package: TO126
Bu ürüne ilk yorumu siz yapın!
