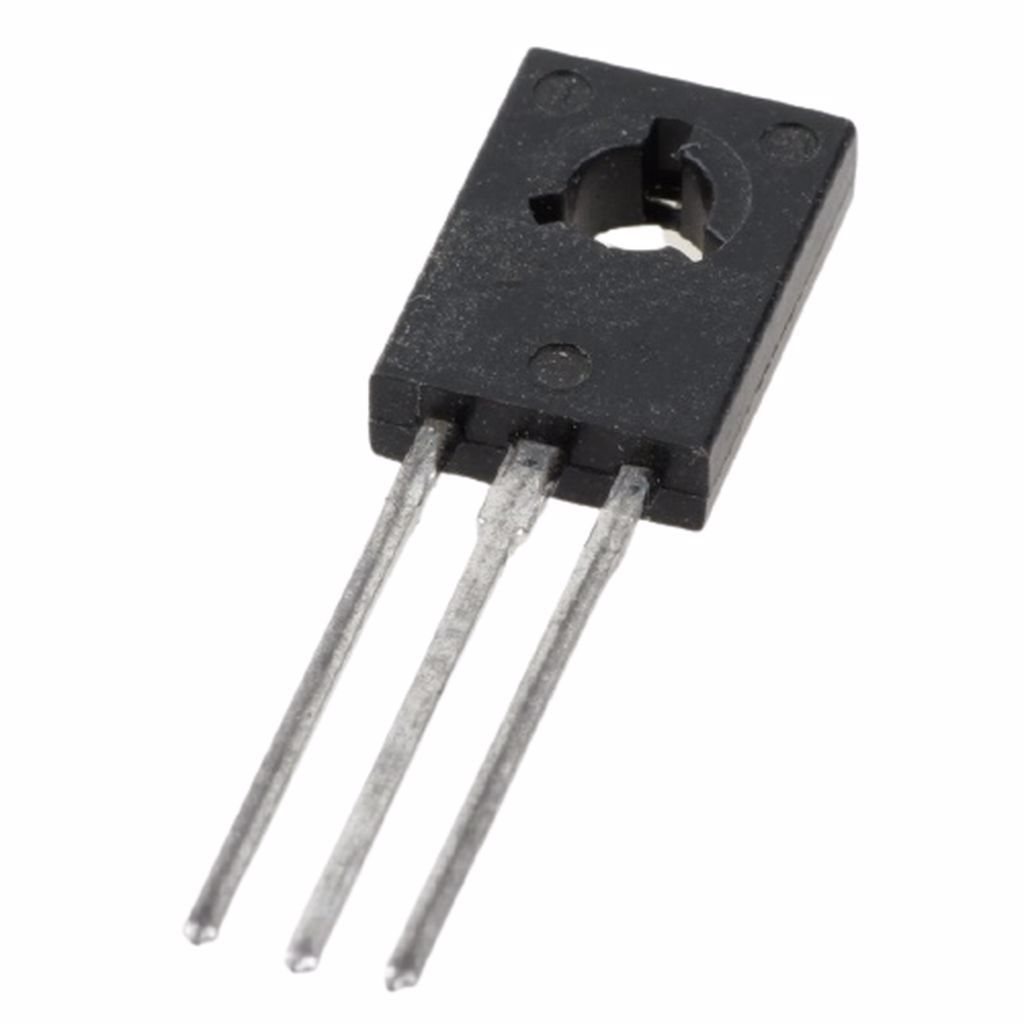

2SC2688-Y TO-126 300V 0.2A 10W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
11 Adet
Fiyat
0,16 USD + KDV
*0,61 TL den başlayan taksitlerle!
6,60 TL
2SC2688-Y TO-126 300V 0.2A 10W NPN TRANSISTOR
2SC2688
Type Designator: 2SC2688
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 3 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO126
