2SC2655-Y TO-92L 60V 2A 0.9W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,18 USD + KDV
*0,69 TL den başlayan taksitlerle!
7,45 TL

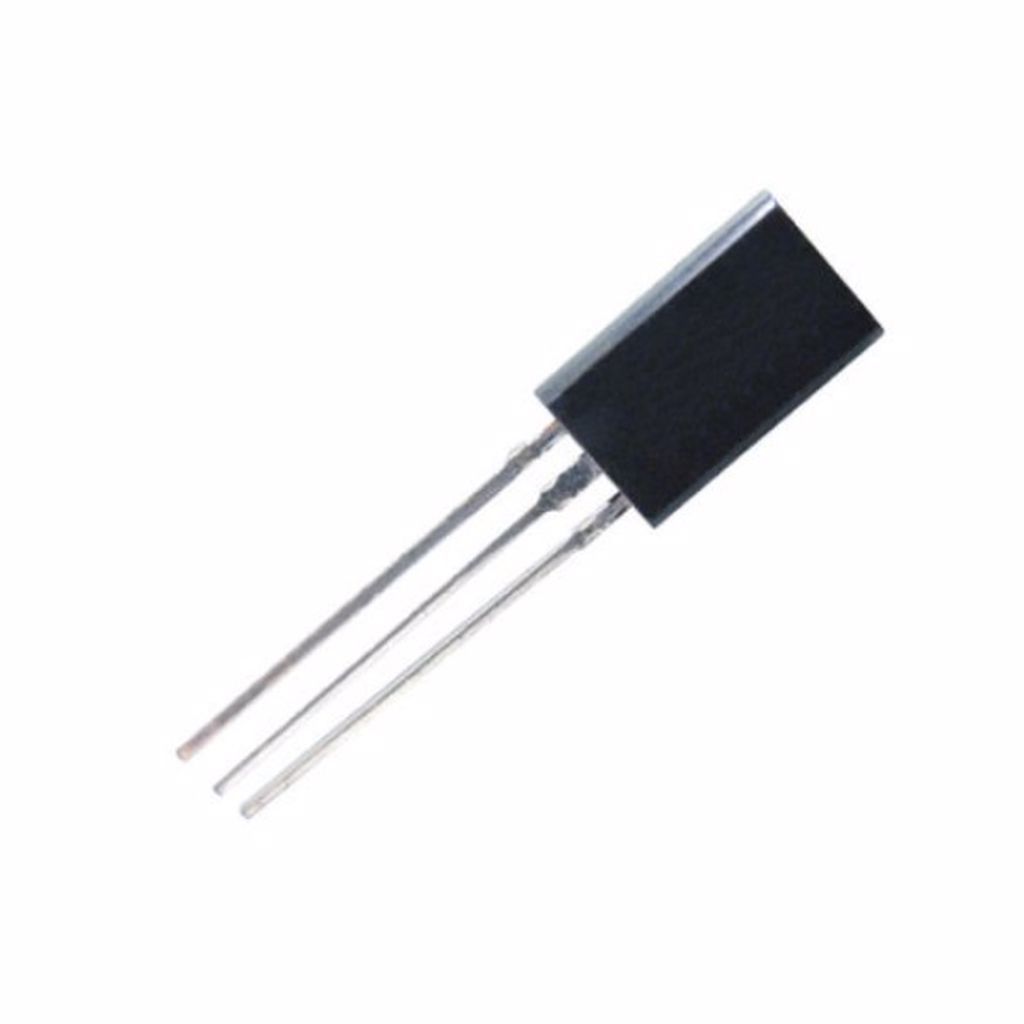

2SC2655 TO-92L 60V 2A 0.9W NPN TRANSISTOR
2SC2655
Type Designator: 2SC2655
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 35 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: TO92
