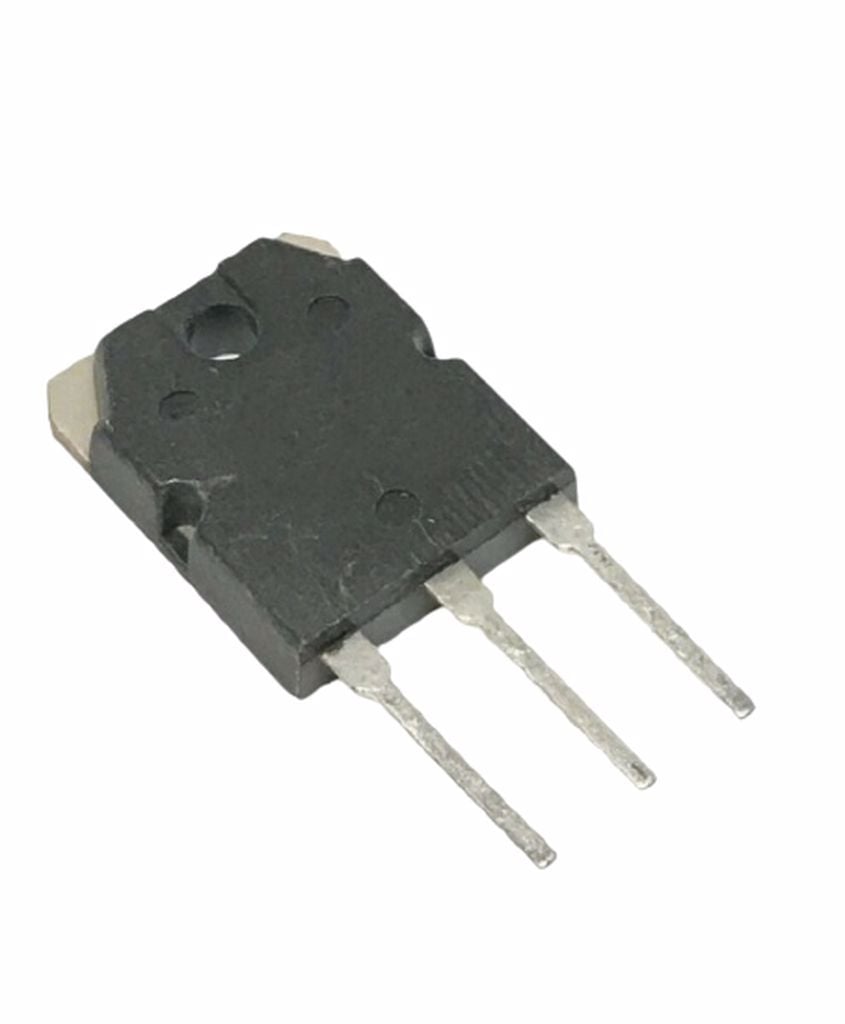

2SC2555 TO-3PI 500V 8A 80W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
1,78 USD + KDV
*6,82 TL den başlayan taksitlerle!
73,40 TL
2SC2555 TO-3PI 500V 8A 80W NPN TRANSISTOR
2SC2555
Type Designator: 2SC2555
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 500 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO218
