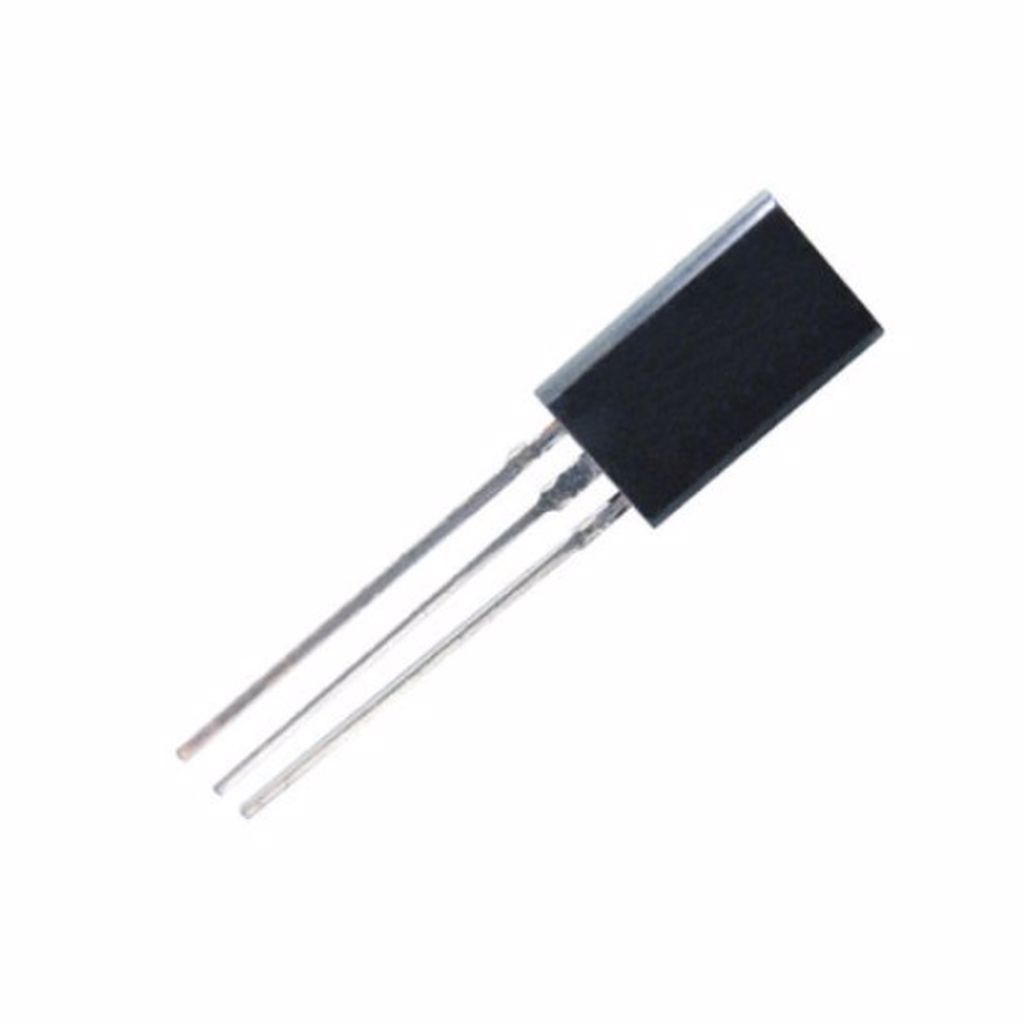

2SC2328A TO-92L 30V 2A 0.625W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
64 Adet
Fiyat
0,19 USD + KDV
*0,73 TL den başlayan taksitlerle!
7,83 TL
2SC2328A TO-92L 30V 2A 0.625W NPN TRANSISTOR
2SC2328A
Type Designator: 2SC2328A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.625 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO-92 TO-92NL
Bu ürüne ilk yorumu siz yapın!
