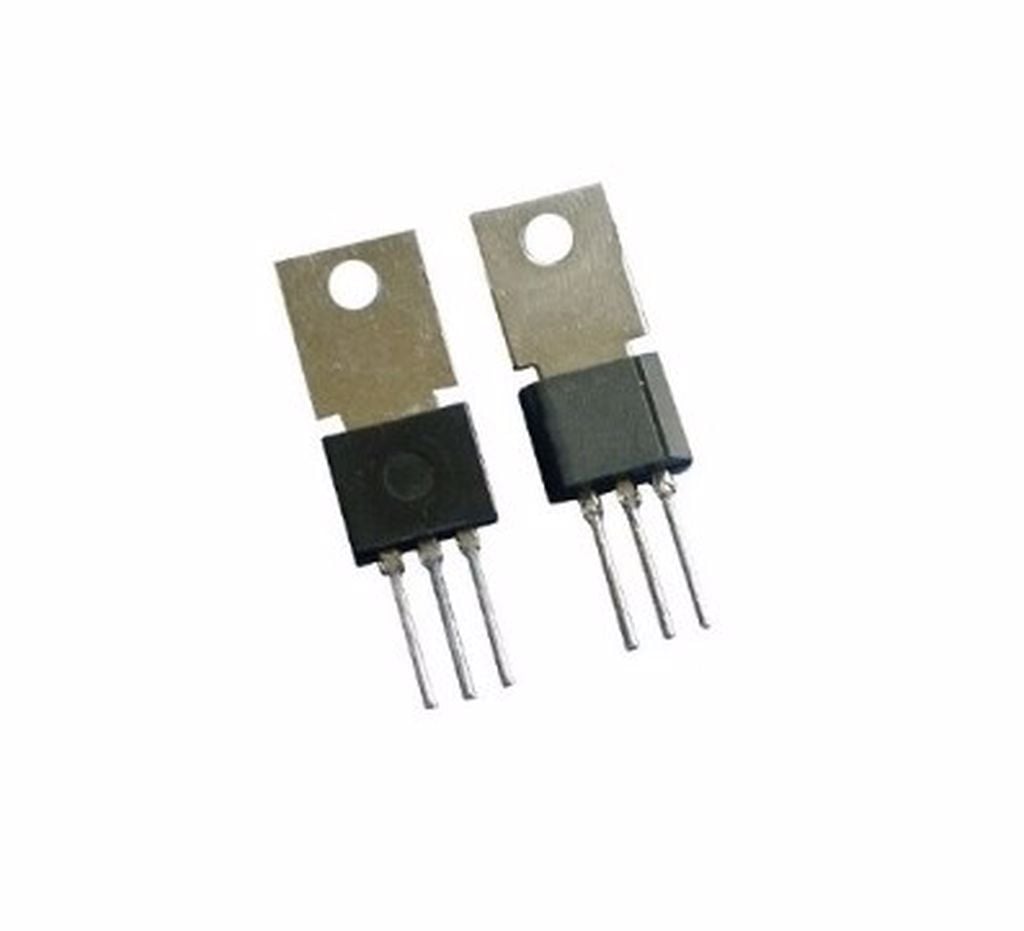

2SC2068 TO-202 0.05A 300V 1.5W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
15 Adet
Fiyat
0,09 USD + KDV
*0,35 TL den başlayan taksitlerle!
3,71 TL
2SC2068 TO-202 0.05A 300V 1.5W NPN TRANSISTOR
2SC2068
Type Designator: 2SC2068
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.5 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 75 MHz
Collector Capacitance (Cc): 4 pF
Forward Current Transfer Ratio (hFE), MIN: 30
Package: TO202
