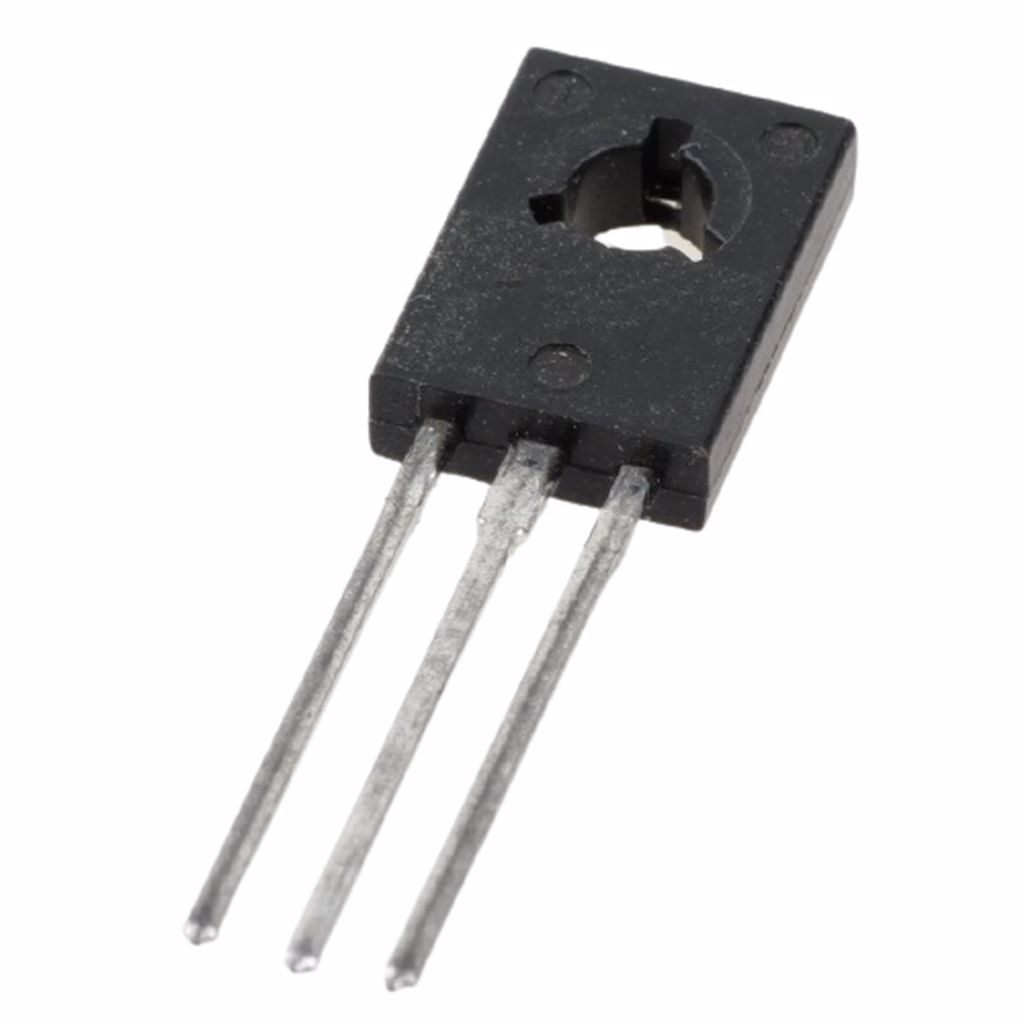

2SC1846-S TO-126 45V 1A NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
16 Adet
Fiyat
0,40 USD + KDV
*1,53 TL den başlayan taksitlerle!
16,49 TL
2SC1846-S TO-126 45V 1A NPN TRANSISTOR
2SC1846
Type Designator: 2SC1846
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.2 W
Maximum Collector-Base Voltage |Vcb|: 45 V
Maximum Collector-Emitter Voltage |Vce|: 35 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Package: TO126
