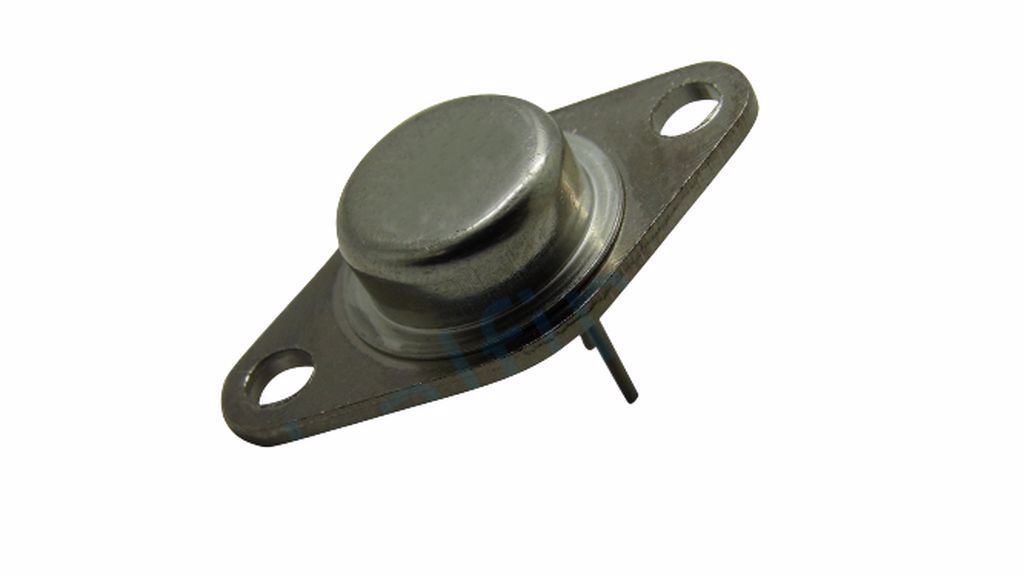

2SC1316 TO-66 750V 2A 23W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
6 Adet
Fiyat
1,50 USD + KDV
*5,75 TL den başlayan taksitlerle!
61,85 TL
2SC1316 TO-66 750V 2A 23W NPN TRANSISTOR
2SC1316
Type Designator: 2SC1316
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 23 W
Maximum Collector-Base Voltage |Vcb|: 750 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 4
Package: TO66
