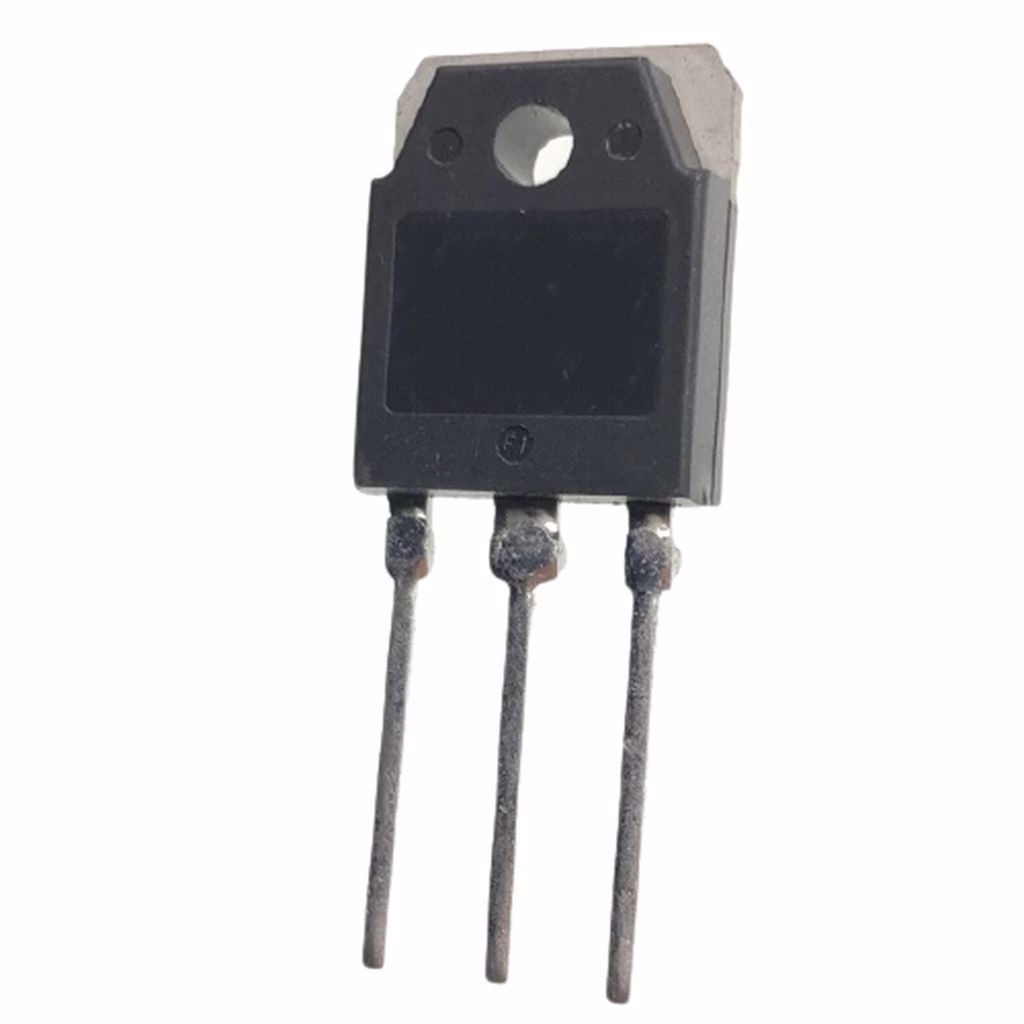

2SB829 TO-3P 15A 60V 90W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
8 Adet
Fiyat
1,95 USD + KDV
*7,51 TL den başlayan taksitlerle!
80,76 TL
2SB829 TO-3P 15A 60V 90W PNP TRANSISTOR
2SB829
Type Designator: 2SB829
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN: 70
Noise Figure, dB: -
