2SB810 TO-92 0.7A 30V 0.35W PNP TRANSISTOR
0 - Yorum
0,00 TL
2SB810 TO-92 0.7A 30V 0.35W PNP TRANSISTOR
2SB810
Type Designator: 2SB810
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.35 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.7 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 80 MHz
Collector Capacitance (Cc): 17 pF
Forward Current Transfer Ratio (hFE), MIN: 200

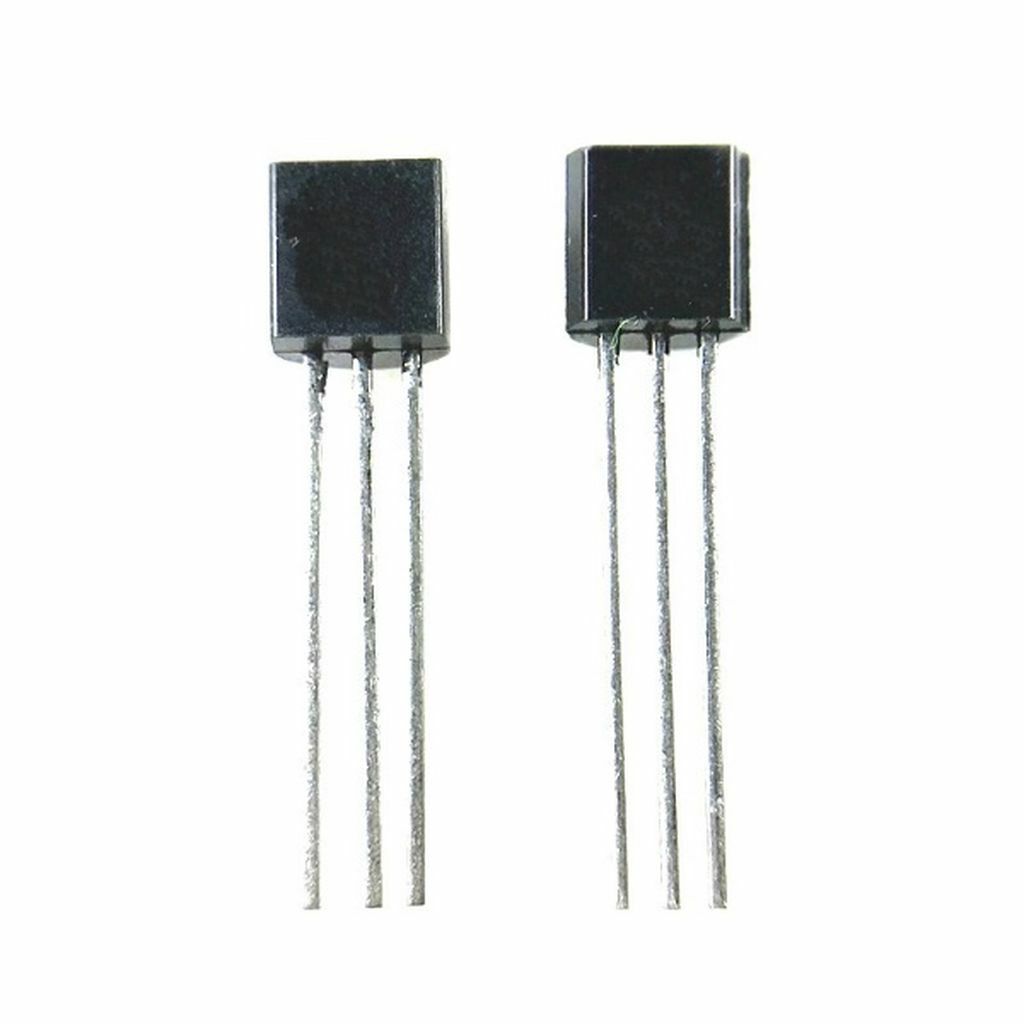

Package: TO92
