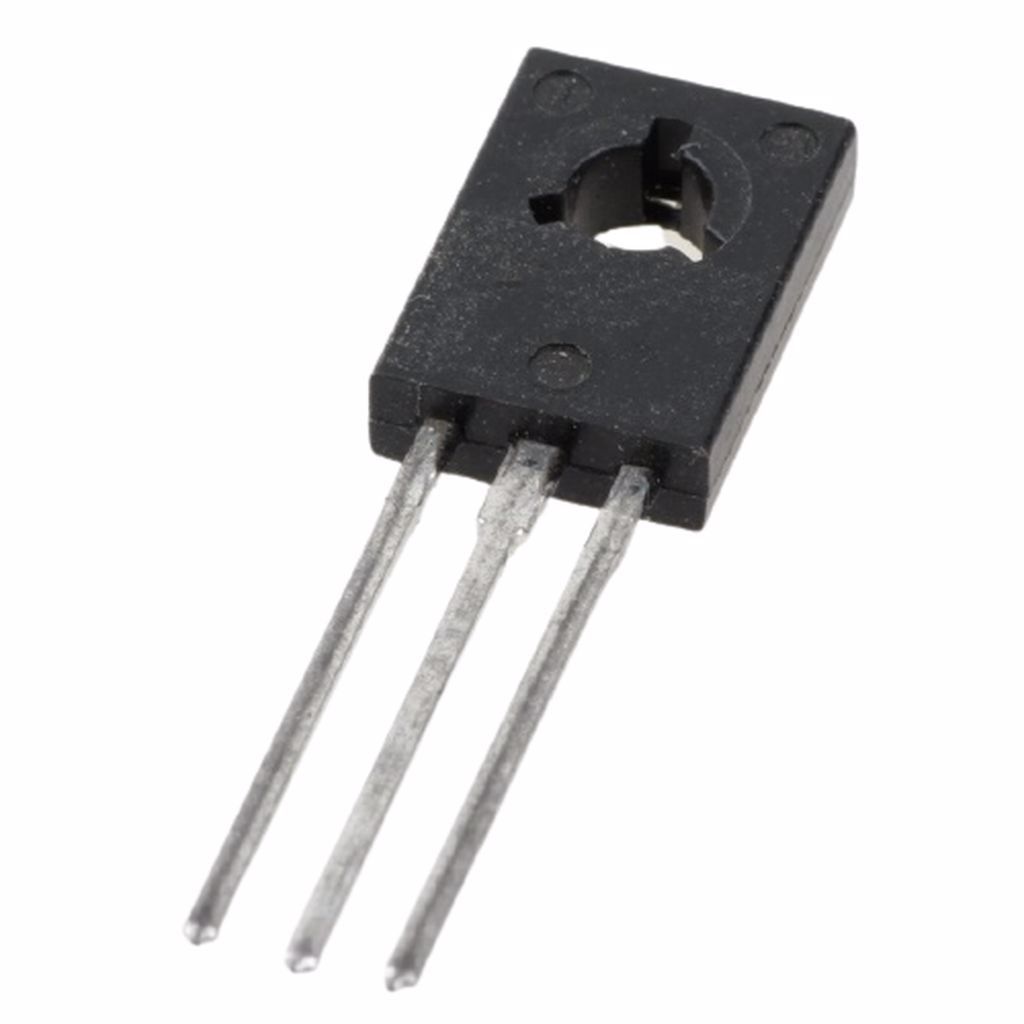

2SB772 - (2SB772-AZ/JM) TO-126 3A 40V 10W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
879 Adet
Fiyat
0,18 USD + KDV
*0,69 TL den başlayan taksitlerle!
7,45 TL
2SB772 TO-126 3A 40V 10W PNP TRANSISTOR
2SB772
Type Designator: 2SB772
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 40 MHz
Collector Capacitance (Cc): 55 pF
Forward Current Transfer Ratio (hFE), MIN: 160
Package: TO126
