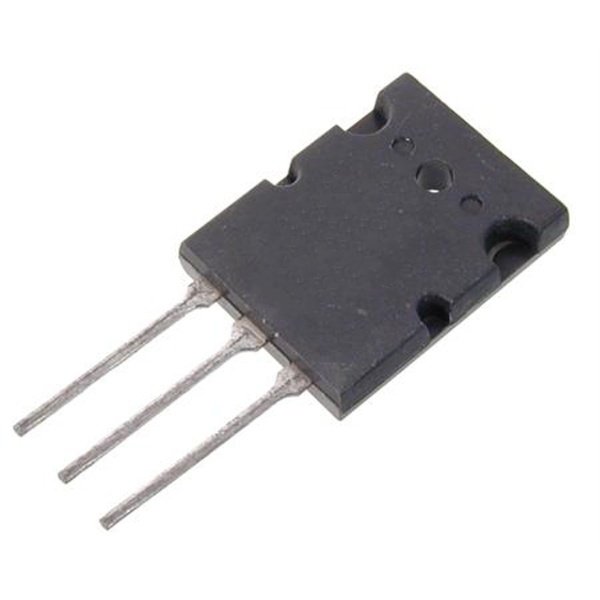

2SB1429 TO-3PL 15A 180V 150W PNP TRANSISTOR
2SB1429
Type Designator: 2SB1429
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Collector-Emitter Voltage |Vce|: 180 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO126
