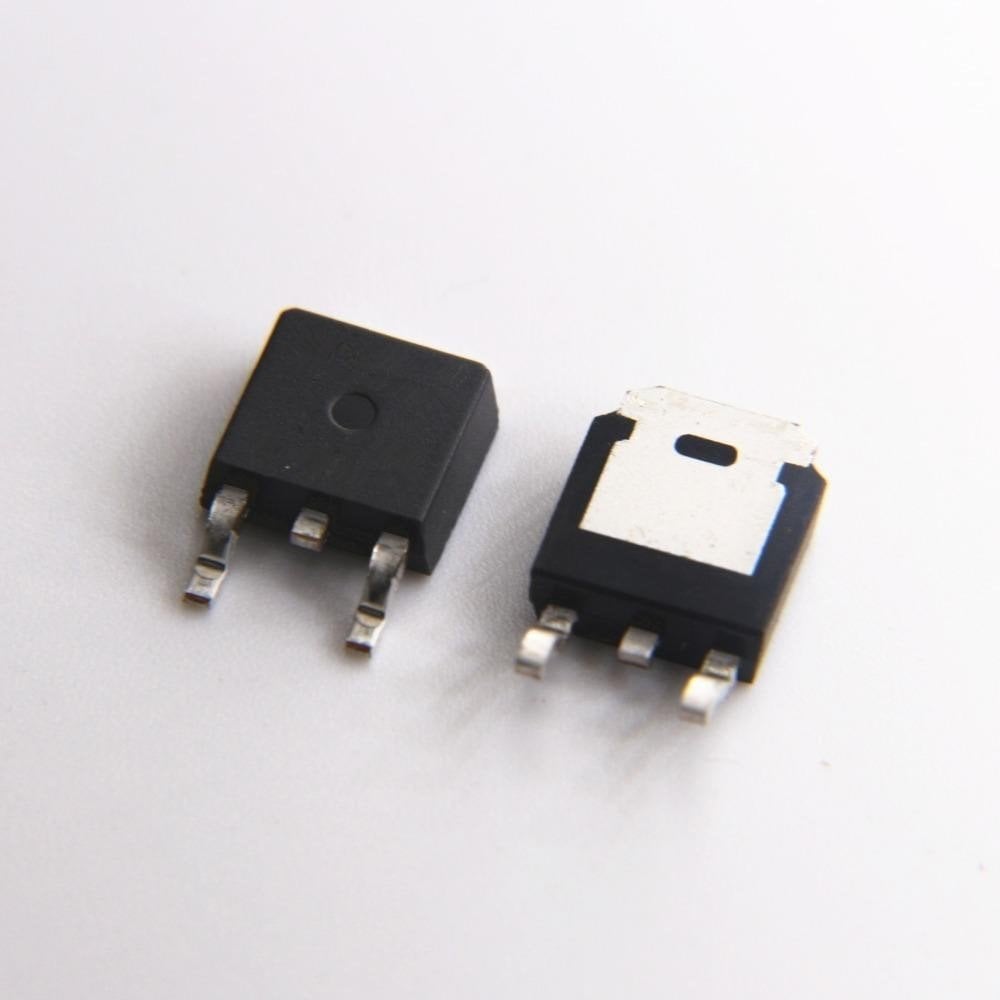

2SB1261-Z-E1 TO-252 3A 60V 10W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
21 Adet
Fiyat
0,45 USD + KDV
*1,73 TL den başlayan taksitlerle!
18,64 TL
2SB1261-Z-E1 TO-252 3A 60V 10W PNP TRANSISTOR
2SB1261-Z
Type Designator: 2SB1261-Z
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: MP-3
