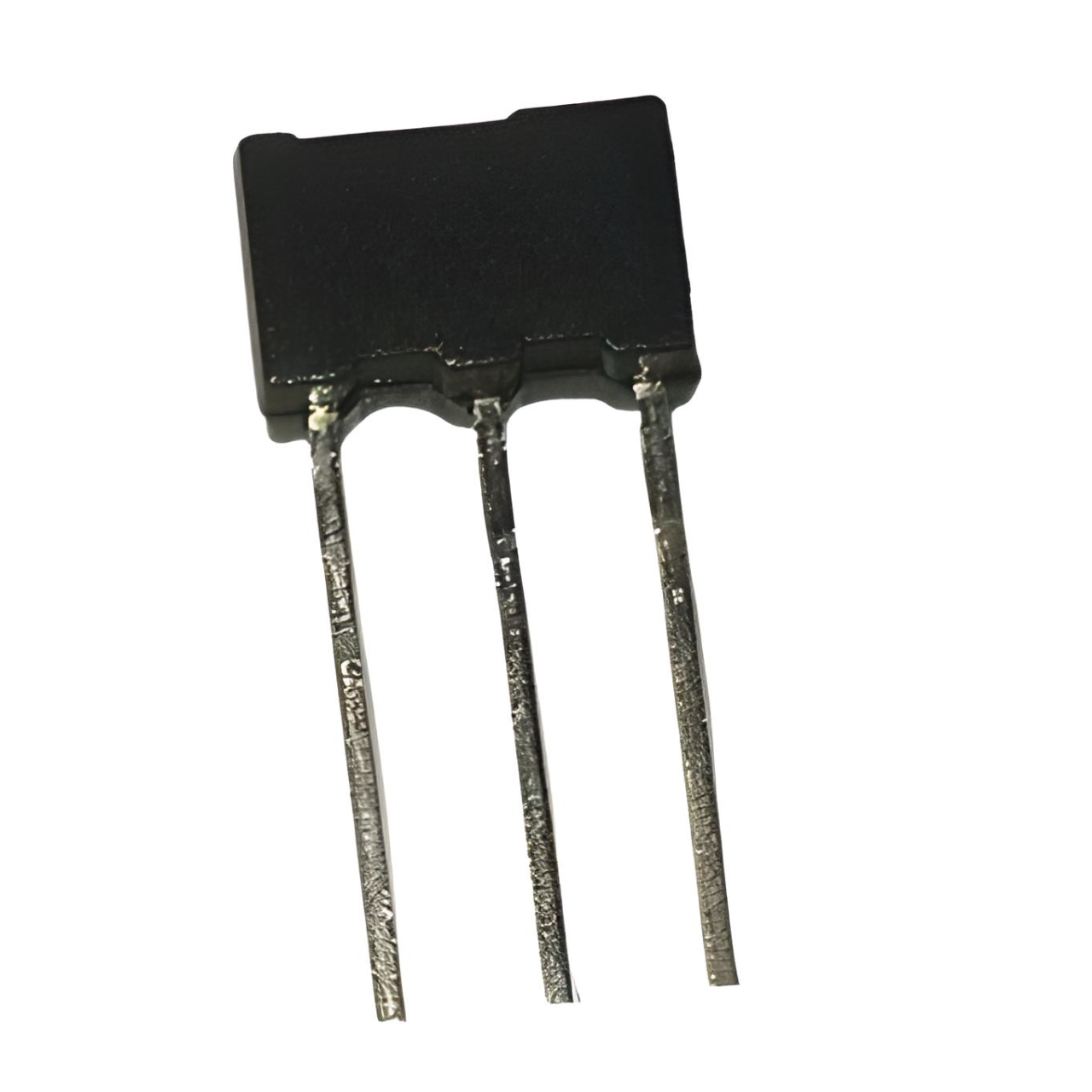

2SB1238TV2R SIP-3 0.7A 80V 1W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
50 Adet
Fiyat
0,95 USD + KDV
*4,02 TL den başlayan taksitlerle!
43,23 TL
2SB1238TV2R SIP-3 0.7A 80V 1W PNP TRANSISTOR
2SB1238
Type Designator: 2SB1238
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.7 A
Max. Operating Junction Temperature (Tj): 165 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN: 140
Package: SOT33
Bu ürüne ilk yorumu siz yapın!
