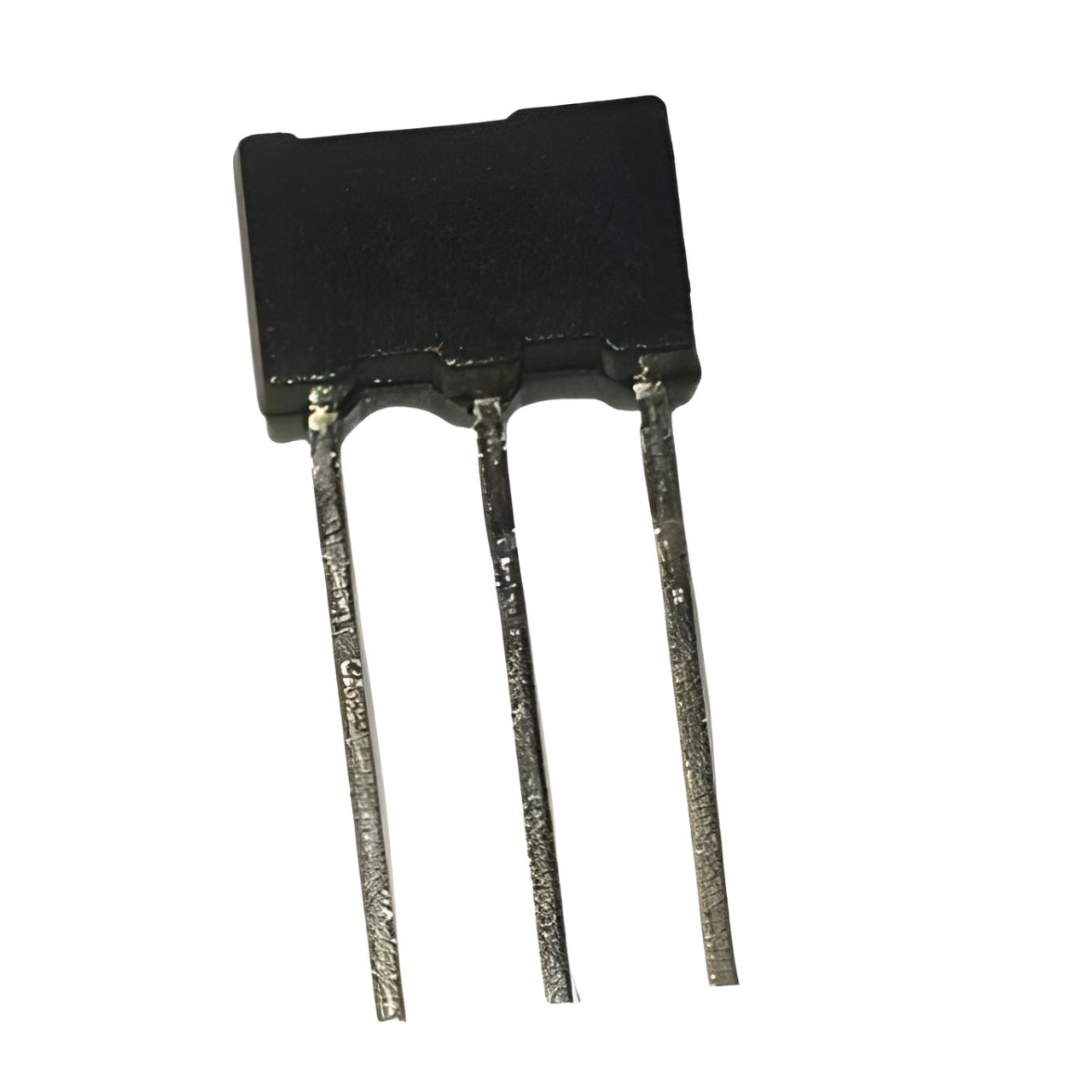

2SB1237 SIP-3 1A 40V 1W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
6 Adet
Fiyat
0,92 USD + KDV
*3,89 TL den başlayan taksitlerle!
41,86 TL
2SB1237 SIP-3 1A 40V 1W PNP TRANSISTOR
2SB1237
Type Designator: 2SB1237
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 185 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN: 140
Package: SOT33
