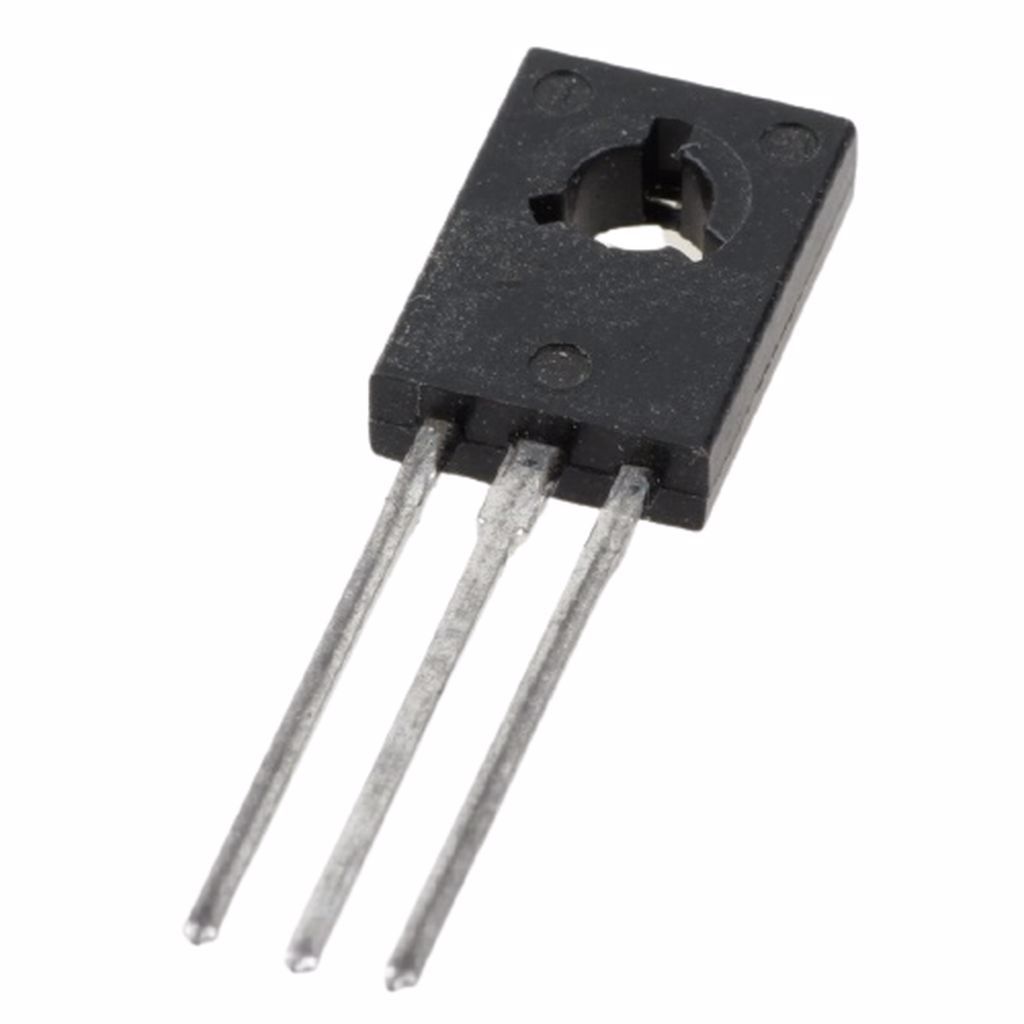

2SB1168 TO-126 4A 120V 20W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,95 USD + KDV
*3,64 TL den başlayan taksitlerle!
39,19 TL
2SB1168 TO-126 4A 120V 20W PNP TRANSISTOR
2SB1168
Type Designator: 2SB1168
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 20 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 130 MHz
Collector Capacitance (Cc): 65 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: TO126
Bu ürüne ilk yorumu siz yapın!
