2SB1068 TO-92 2A 20V 0.75W PNP TRANSISTOR
0 - Yorum
0,00 TL
2SB1068 TO-92 2A 20V 0.75W PNP TRANSISTOR
2SB1068
Type Designator: 2SB1068
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.75 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 165 °C
Transition Frequency (ft): 90 MHz
Forward Current Transfer Ratio (hFE), MIN: 50

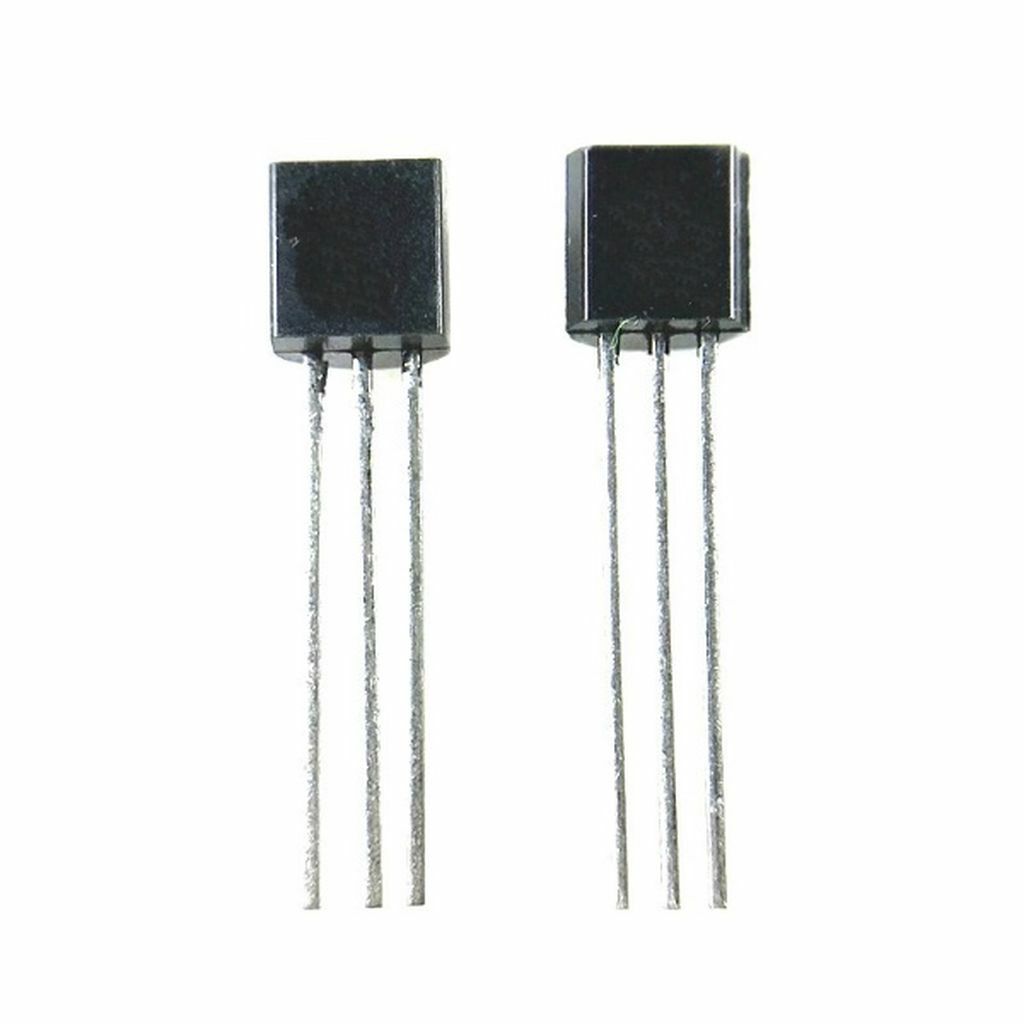

Package: TO92
