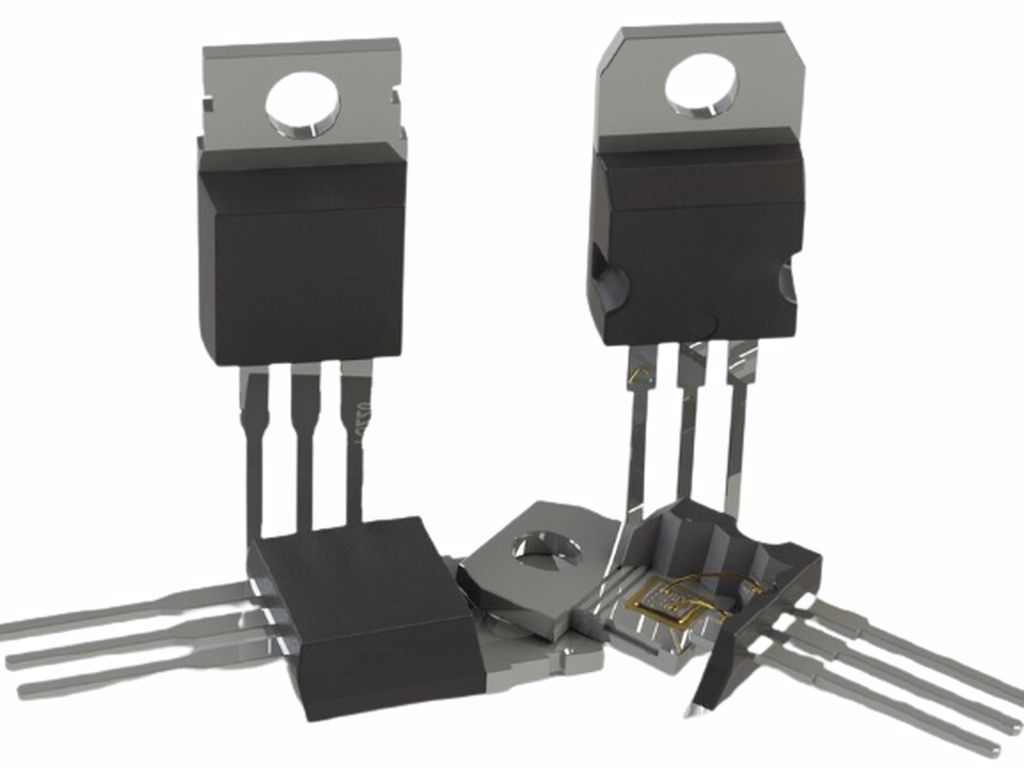

2SA940 TO-220 150V 1.5A 25W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1200 Adet
Fiyat
0,27 USD + KDV
*1,04 TL den başlayan taksitlerle!
11,13 TL
2SA940 TO-220 150V 1.5A 25W PNP TRANSISTOR
2SA940
Type Designator: 2SA940
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 150 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 110 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO220
Bu ürüne ilk yorumu siz yapın!
