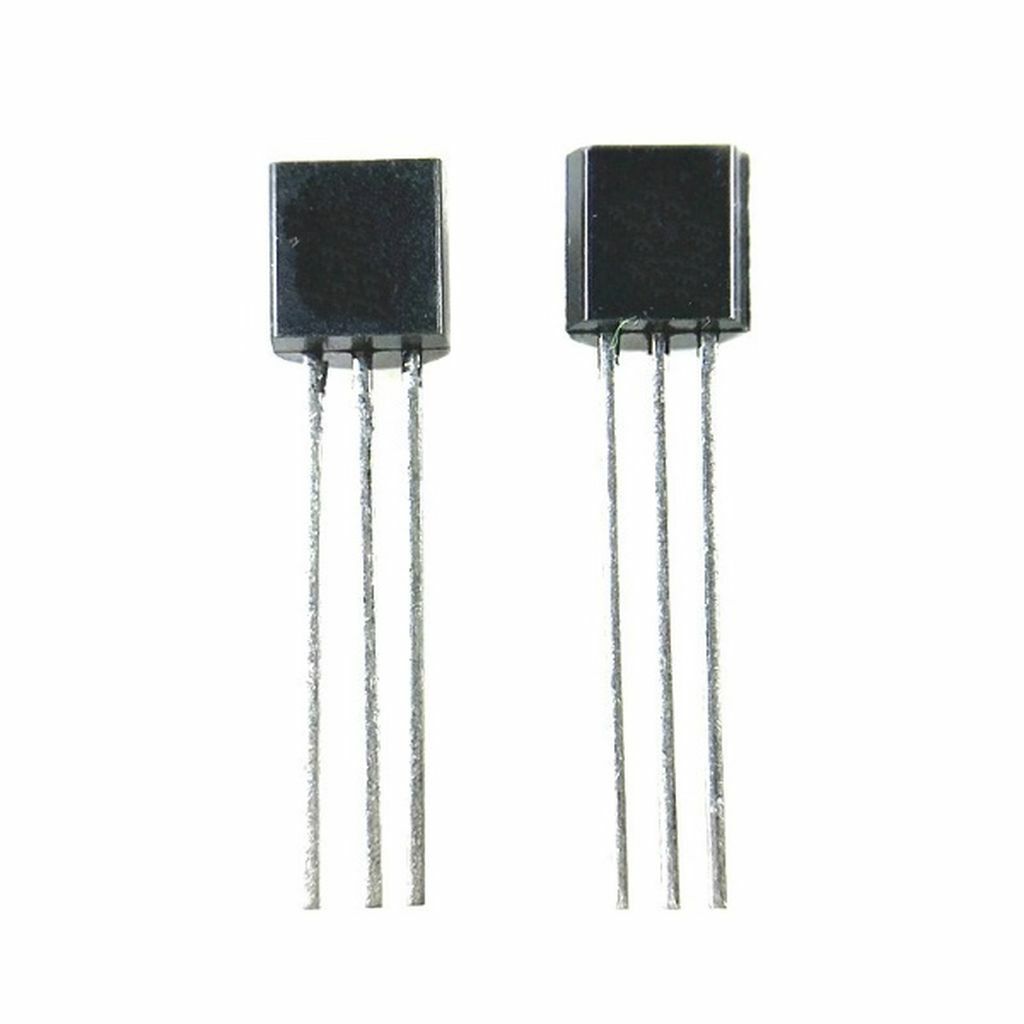

2SA933 - (STA933) TO-92 0.1A 50V 0.3W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,02 USD + KDV
*0,08 TL den başlayan taksitlerle!
0,83 TL
2SA933 - (STA933) TO-92 0.1A 50V 0.3W PNP TRANSISTOR
2SA933
Type Designator: 2SA933
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 140 MHz
Collector Capacitance (Cc): 4 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Package: TO92
Bu ürüne ilk yorumu siz yapın!
