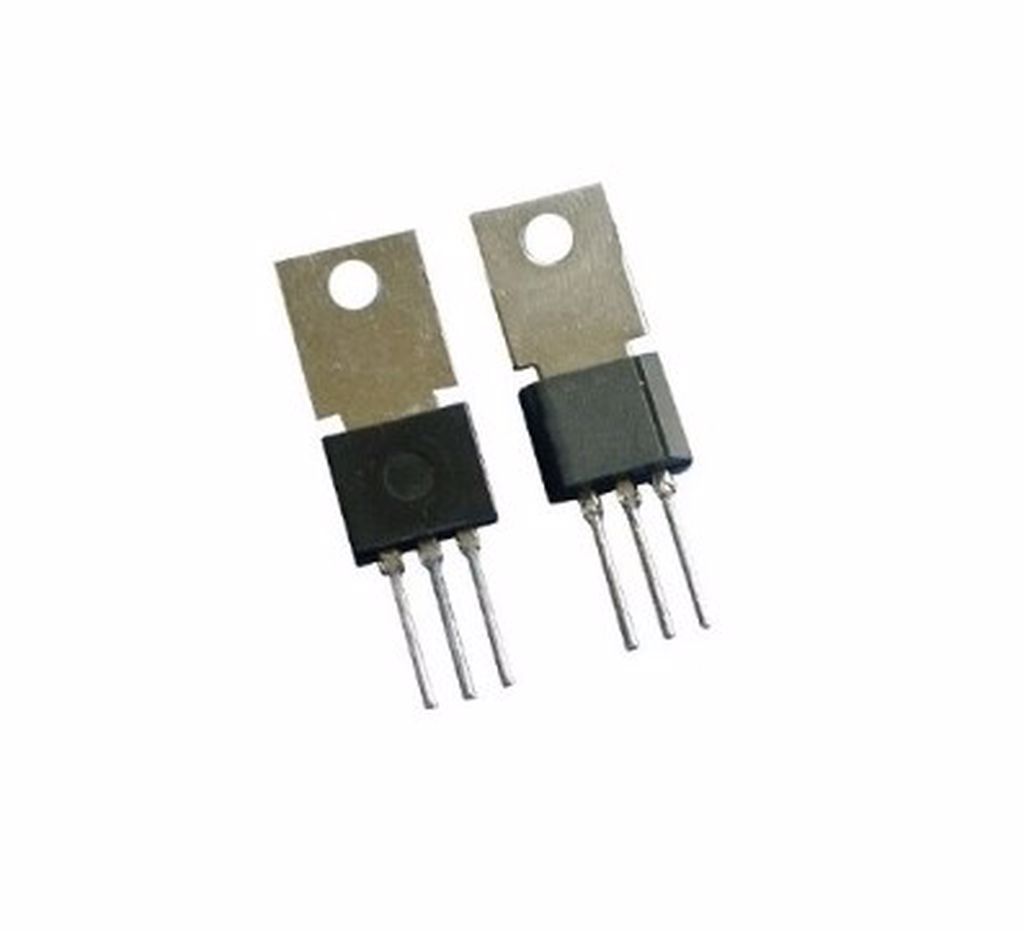

2SA699 TO-202 3A 40V PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
0,17 USD + KDV
*0,65 TL den başlayan taksitlerle!
7,02 TL
2SA699A TO-202 3A 40V PNP TRANSISTOR
2SA699
Type Designator: 2SA699
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Package: TO202
