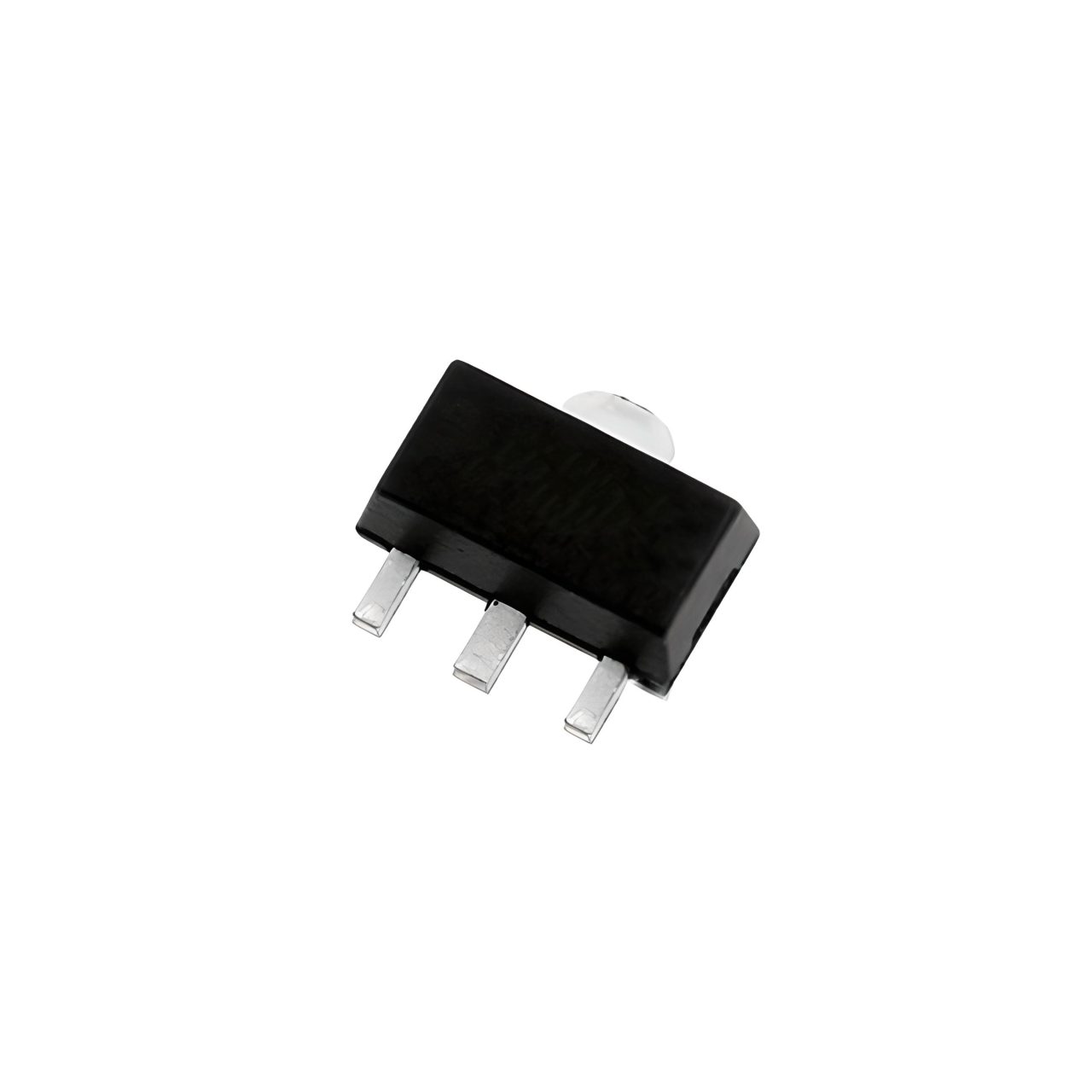

2SA1812T100Q SOT-89 0.5A 400V 2W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
66 Adet
Fiyat
0,60 USD + KDV
*2,39 TL den başlayan taksitlerle!
25,75 TL
2SA1812T100Q SOT-89 0.5A 400V 2W PNP TRANSISTOR
2SA1812
Type Designator: 2SA1812
SMD Transistor Code: AJ
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 2 W
Maximum Collector-Base Voltage |Vcb|: 400 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 12 MHz
Collector Capacitance (Cc): 18 pF
Forward Current Transfer Ratio (hFE), MIN: 82
Package: MPT3
