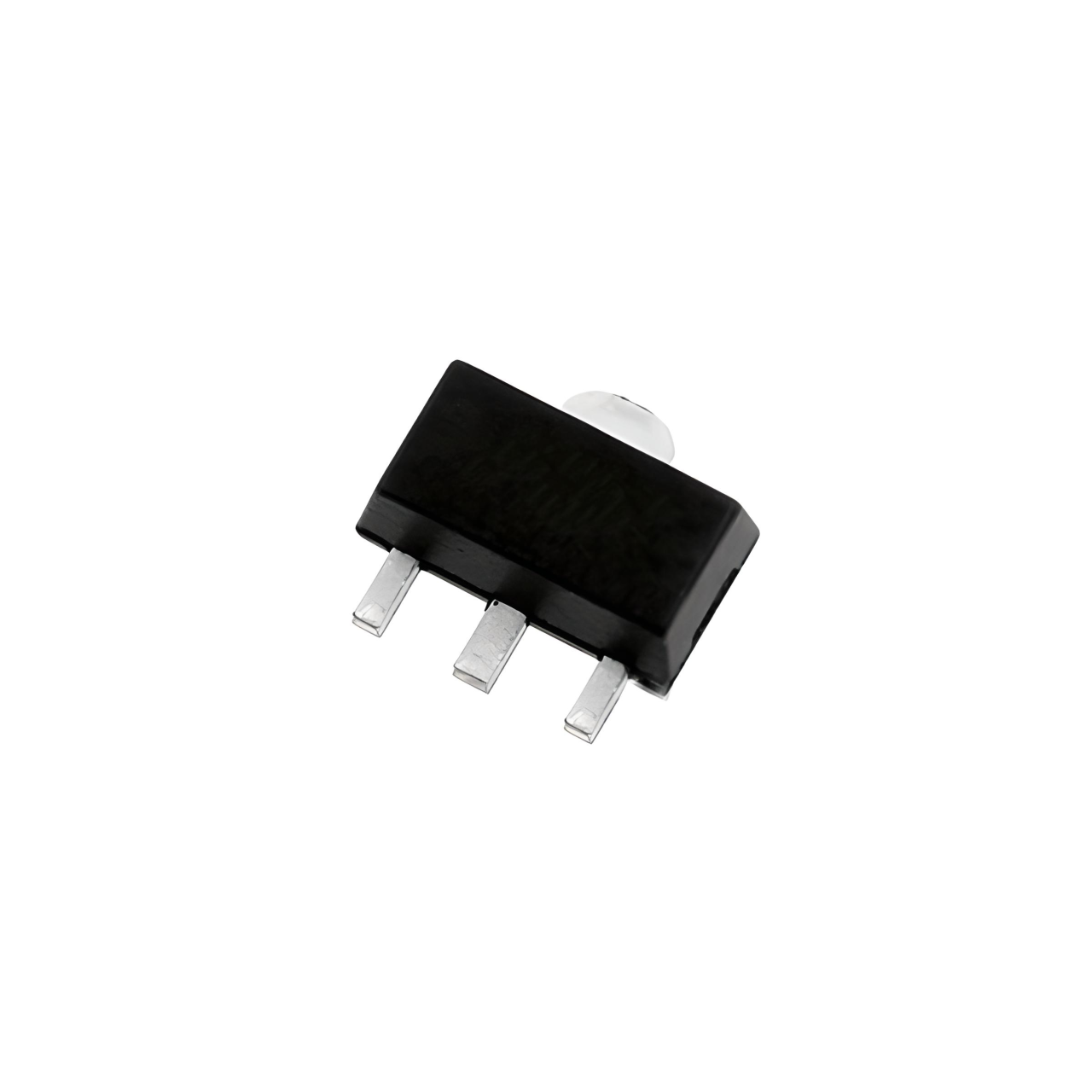

2SA1797 - (AGQ) SOT-89 2A 50V PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
140 Adet
Fiyat
0,35 USD + KDV
*1,35 TL den başlayan taksitlerle!
14,49 TL
2SA1797 - (AGQ) SOT-89 2A 50V PNP TRANSISTOR
2SA1797
Type Designator: 2SA1797
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN: 82
Package: SOT89
