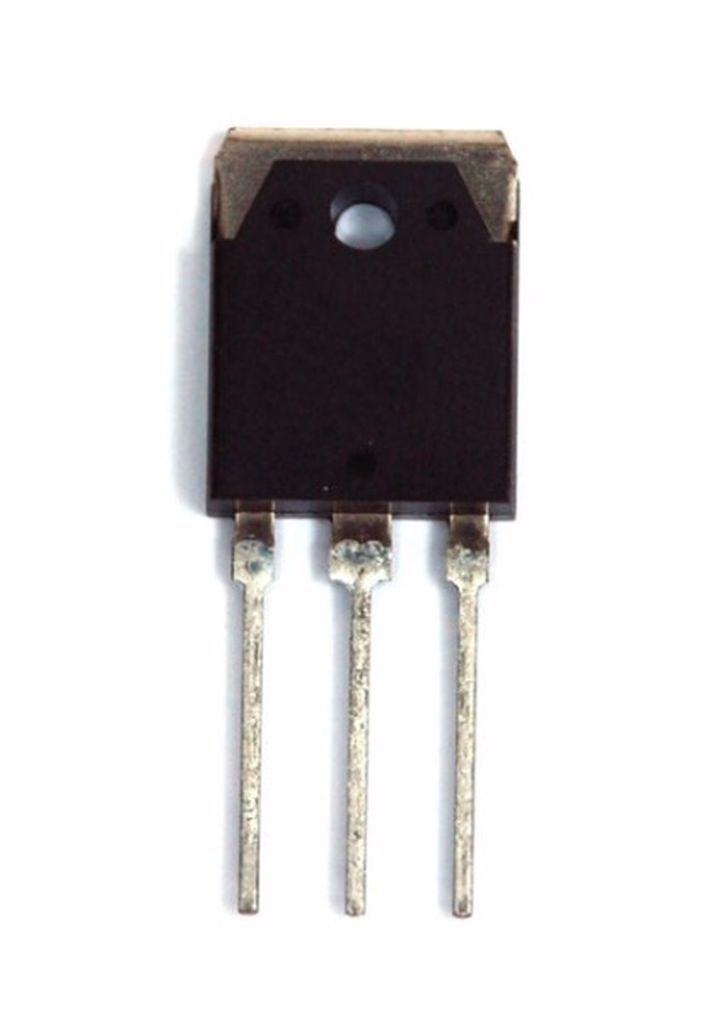

2SA1694 TO-3P 120V 8A 80W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
2,40 USD + KDV
*9,24 TL den başlayan taksitlerle!
99,39 TL
2SA1694 TO-3P 120V 8A 80W PNP TRANSISTOR
2SA1694
Type Designator: 2SA1694
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Collector Capacitance (Cc): 300 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO3P
Bu ürüne ilk yorumu siz yapın!
