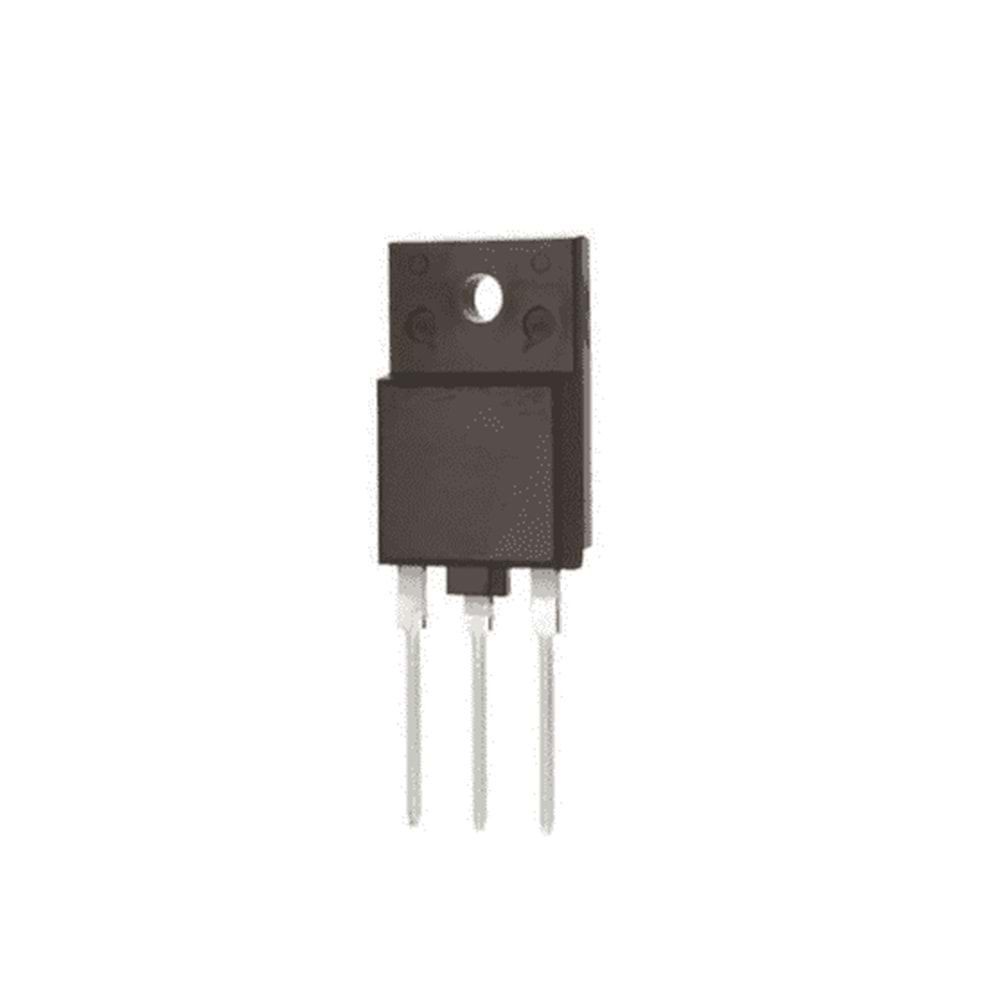

2SA1672 TO-3PF 10A 140V 80W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
3 Adet
Fiyat
2,29 USD + KDV
*8,79 TL den başlayan taksitlerle!
94,52 TL
2SA1672 TO-3PF 10A 140V 80W PNP TRANSISTOR
2SA1672
Type Designator: 2SA1672
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO220
