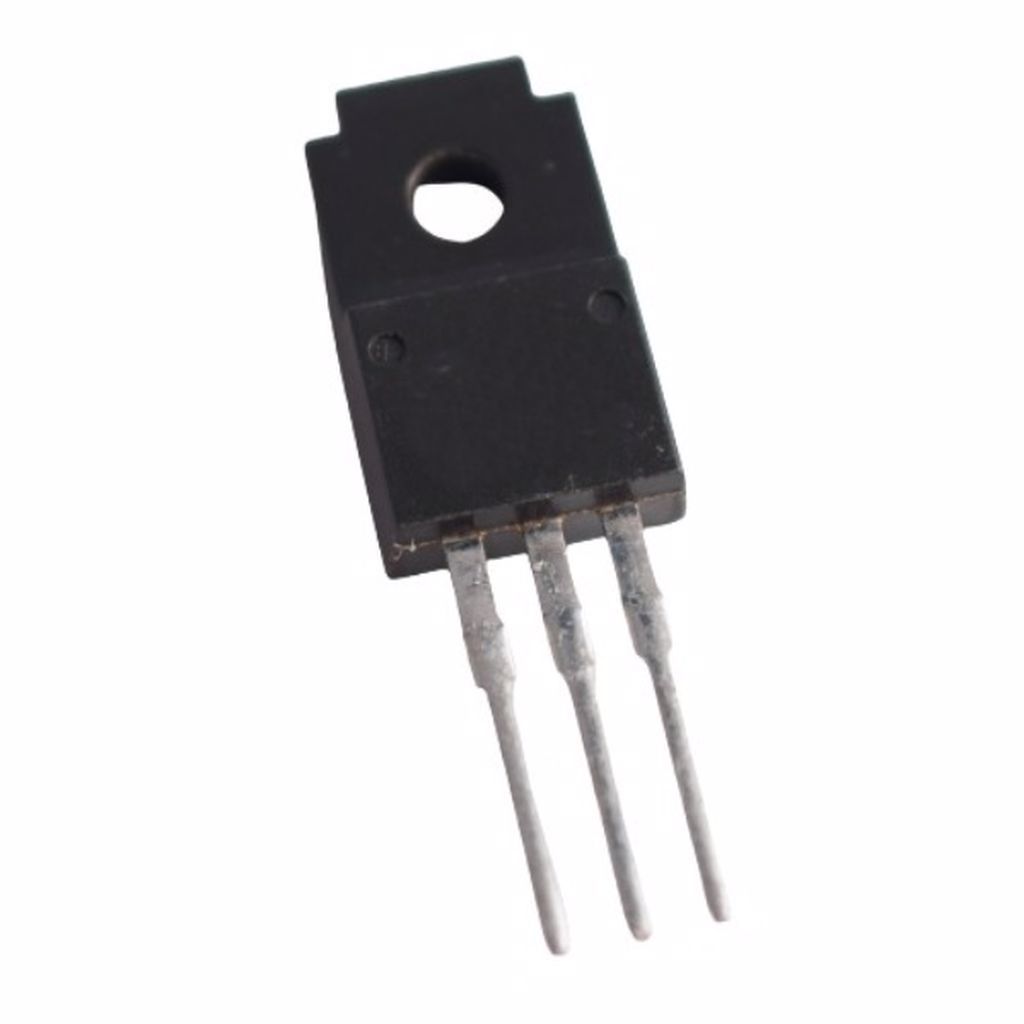

2SA1535A-Q TO-220FA 1A 180V 40W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
1,12 USD + KDV
*4,31 TL den başlayan taksitlerle!
46,38 TL
2SA1535A-Q TO-220FA 1A 180V 40W PNP TRANSISTOR
2SA1535A
Type Designator: 2SA1535A
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Package: TO220
